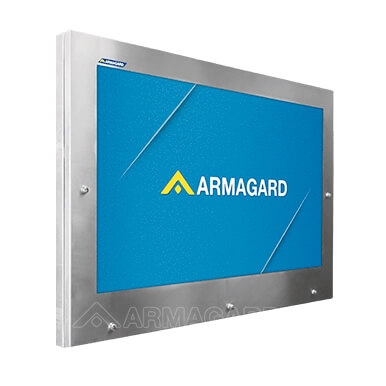

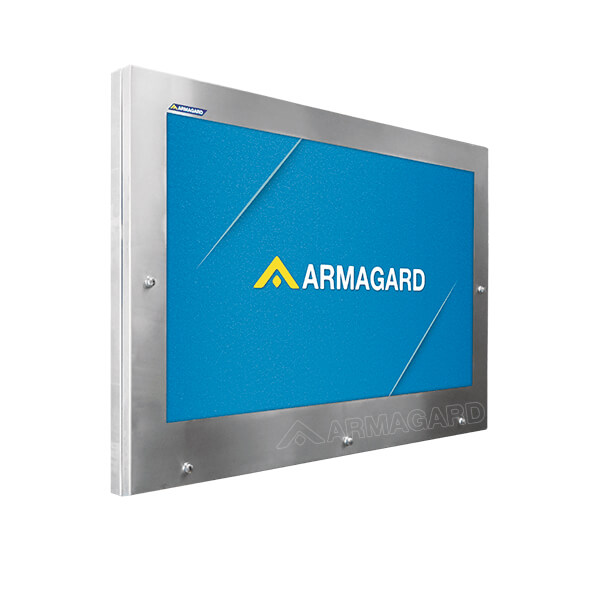

Stainless Steel IP69K Monitor
Safeguard your digital KPI screens against rigorous steam cleaning

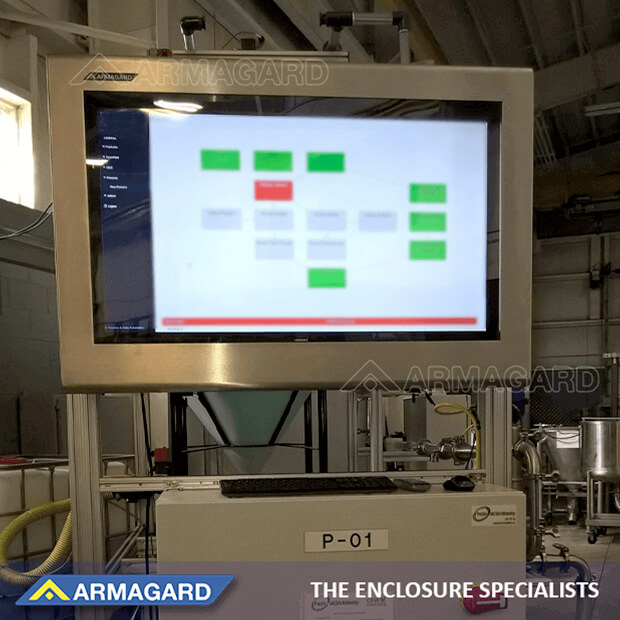

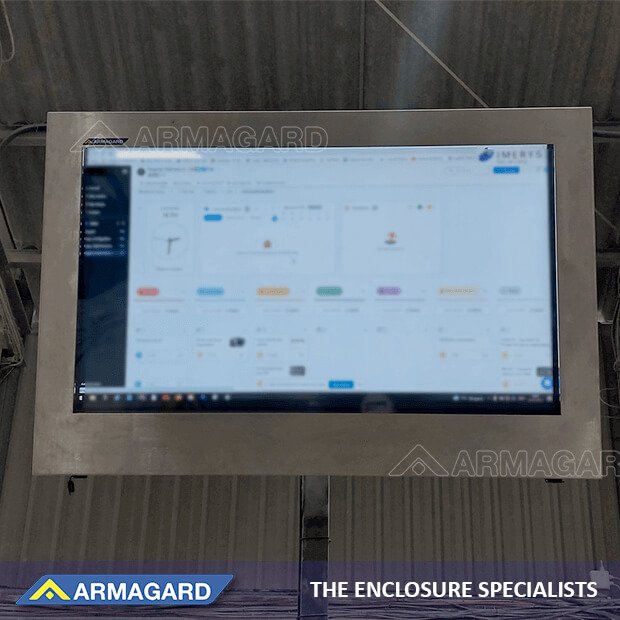

Securely mount a 55" KPI screen in your food or pharmaceutical manufacturing facility. The stainless steel IP69K monitor shields the screen against powerful high-pressure, high-temperature water jets. Perform thorough and time-effective washdown procedures that comply with stringent sanitation standards. The IP69K rating guarantees exceptional durability even in challenging environments.
Click thumbnails for larger images:
- Food and Beverage Processing
- Pharmaceutical Applications
- Chemical Manufacturing
- Petrochemical Plants
- Waste Treatment
Stainless Steel IP69K Monitor, Ideal For:
- Screen Sizes:
- 32", 55", 75" (other sizes available)
- Size (HxWxD) mm:
- 965 × 1425 × 185.5
- Material:
- 316 Stainless Steel
- IP Rating:
- IP69K
- Mounting:
- Ceiling or Wall
- Product Code:
- SDS18-55-W-L-CB1-IP69K
At A Glance: (Specification for 55")
IP69K Jet Wash Video
Food-Grade, Stainless Steel IP69K Monitor
Each component of the IP69K enclosure is specifically designed to facilitate thorough equipment washing. The body, made of food-grade (316) stainless steel, offers antibacterial properties and exceptional corrosion resistance. The inclusion of washdown-rated seals, cable glands, and locks ensures a fully watertight system. Operators can rely on dependable metric display boards that operate continuously, endure intensive daily cleaning, and boost overall productivity.
Armagard enclosures are trusted by food manufacturers throughout the U.K. to safeguard screens in equipment wash areas. The cost-effective stainless steel IP69K monitor optimises screen longevity, resulting in reduced expenses for repairs and replacements. With 30 years of expertise, Armagard stands as the top choice for equipment protection in sanitary industries.
Features And Benefits
| Features | Benefits |
|---|---|

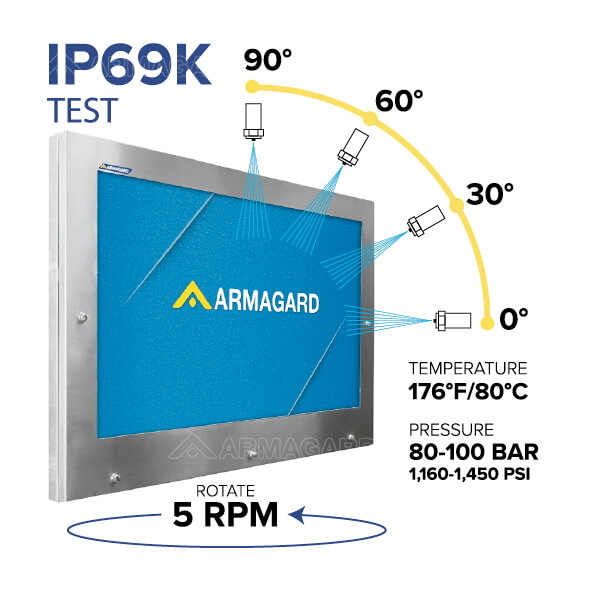

| IP69K Rating | Comply with the strictest sanitation regulations by safely conducting intensive steam and jet cleaning at pressures ranging from 80 to 100 bar/1,160 to 1,450 PSI, with a flow rate of 14 to 16 l/min, and temperatures reaching up to 80°C. |
| Hygiene-Rated Seals and Stainless-Steel Cable Glands | The hygienic, watertight system allows time-efficient washdown and gives you peace of mind that the unit is thoroughly disinfected. |
| Food Grade (316) Stainless Steel | The 316 stainless-steel body is both anti-bacterial and resistant to corrosion, offering superior sanitation on food processing production lines. |
| Internal Thermal Regulation | The advanced controller board effectively regulates internal fans and heaters, ensuring the safe and efficient operation of the screen across a wide temperature range of -30°C to 35°C. |

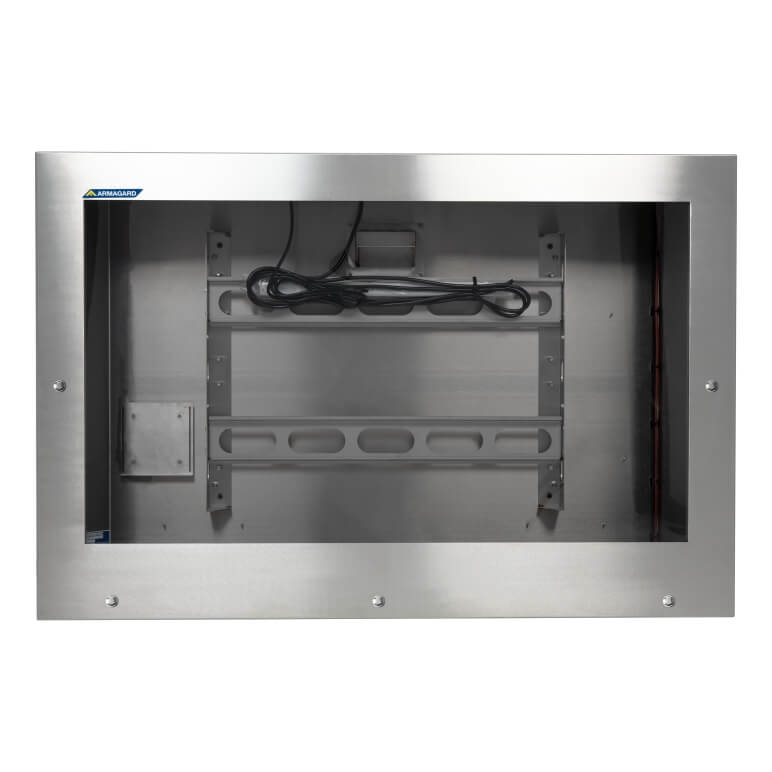

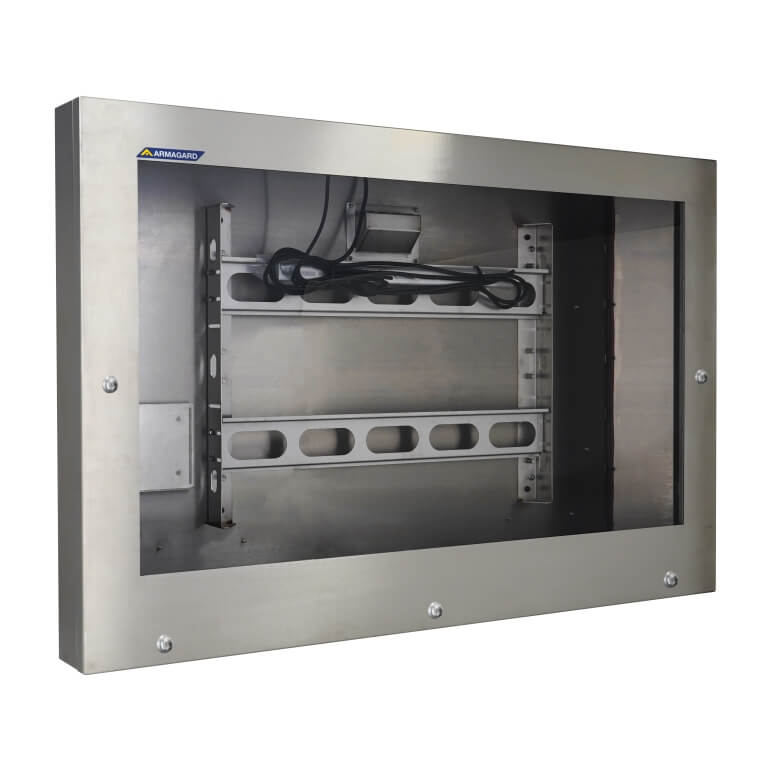

| 10mm Thick Polycarbonate Window | The shatterproof safety window prevents contamination of the production line in the unlikely event of a breakage. |

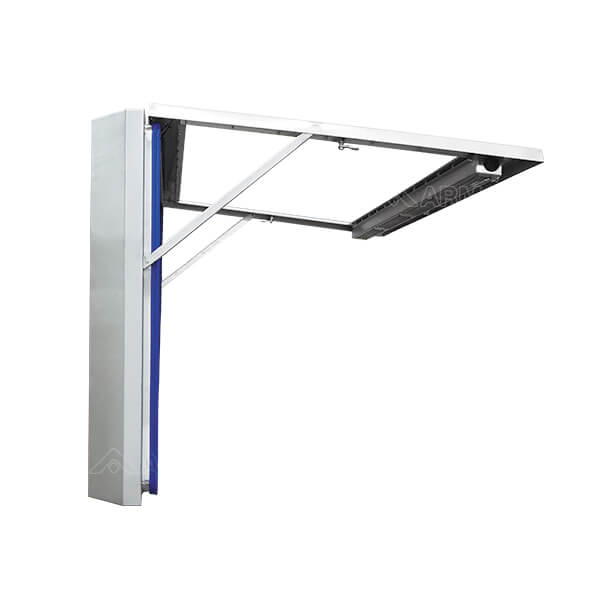

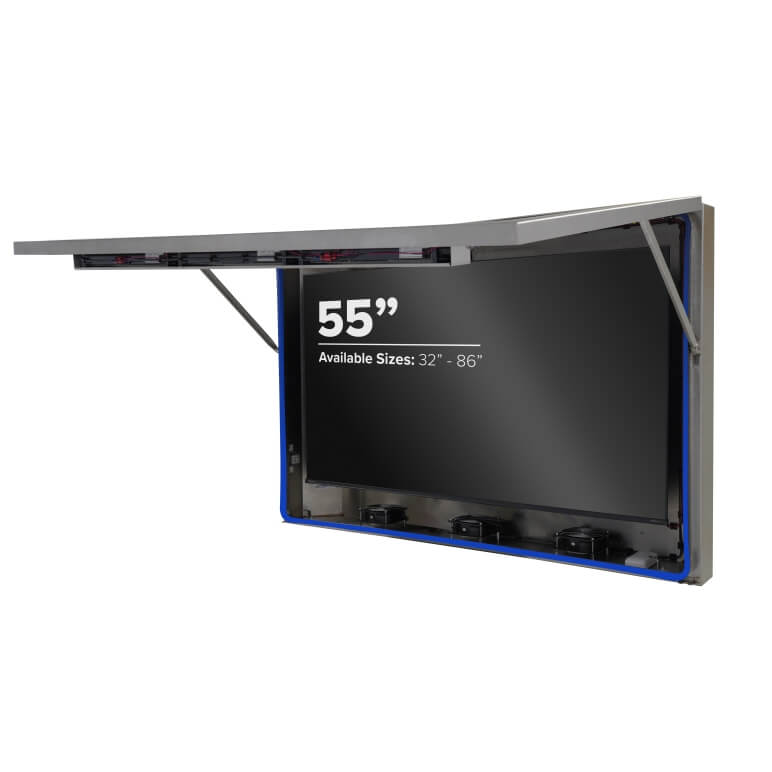

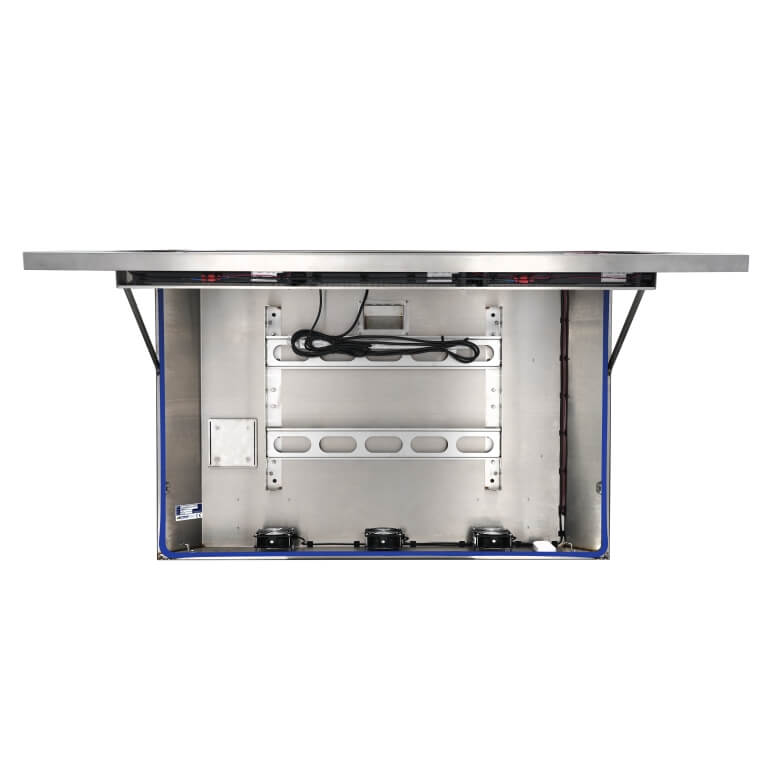

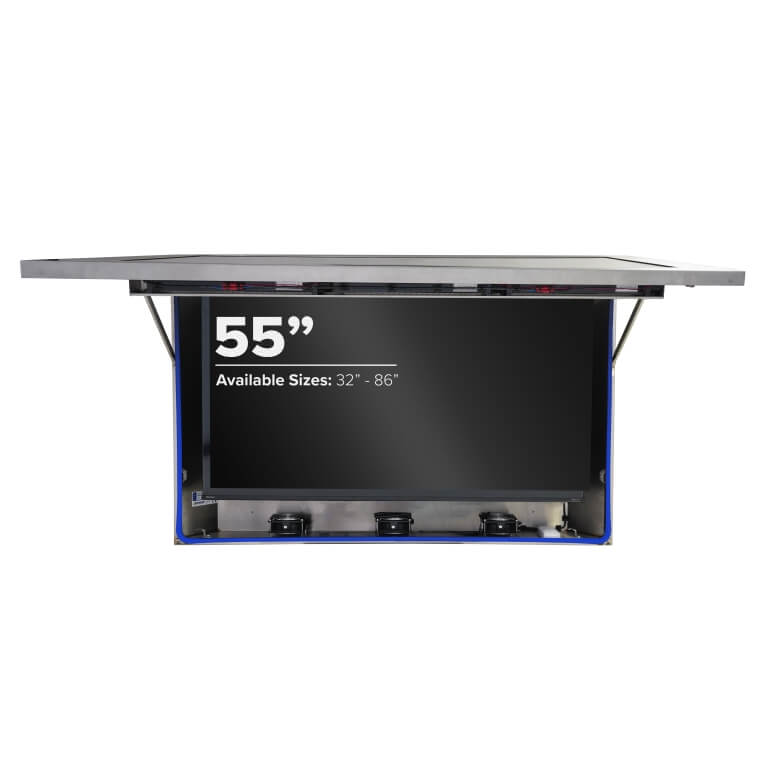

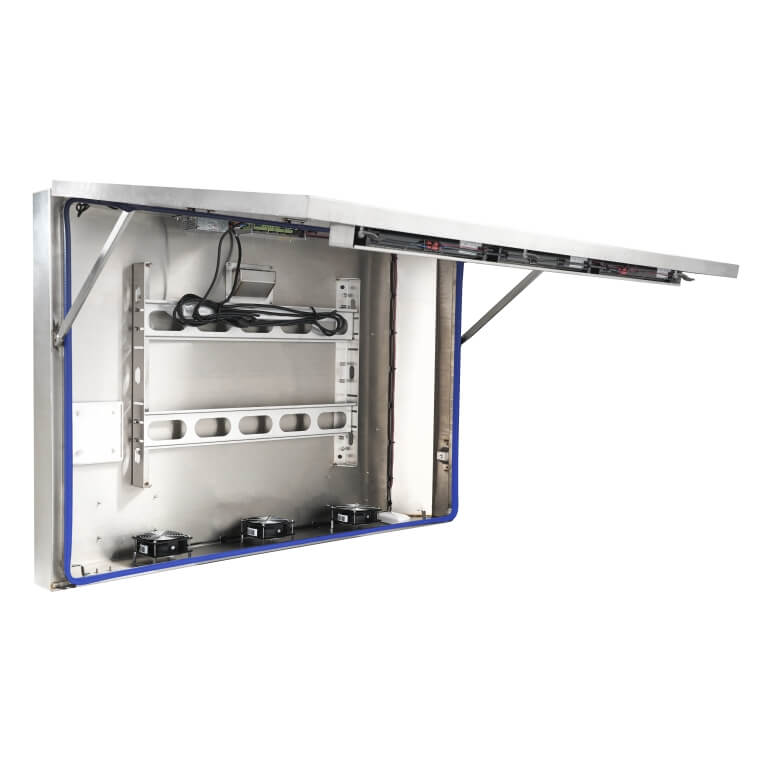

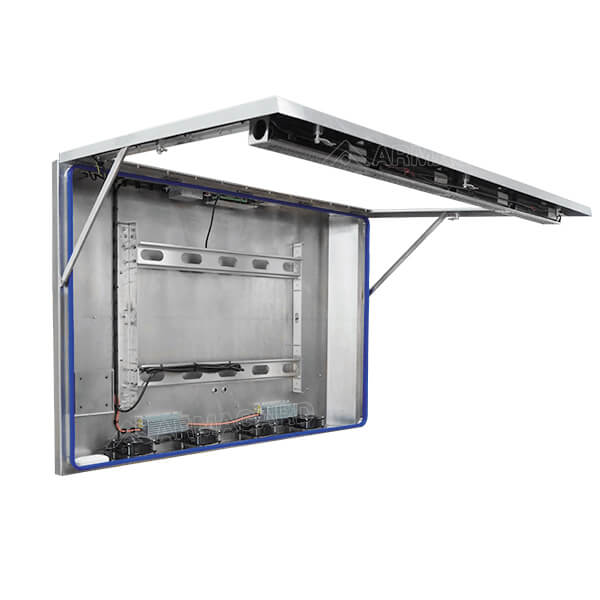

| VESA Mounts and Screen Accessibility | Select and install the 55" VESA compatible screen of your preference. Enjoy convenient access to remove or upgrade the screen at any time, eliminating the need to wait for a specialist technician and ensuring optimal uptime. |

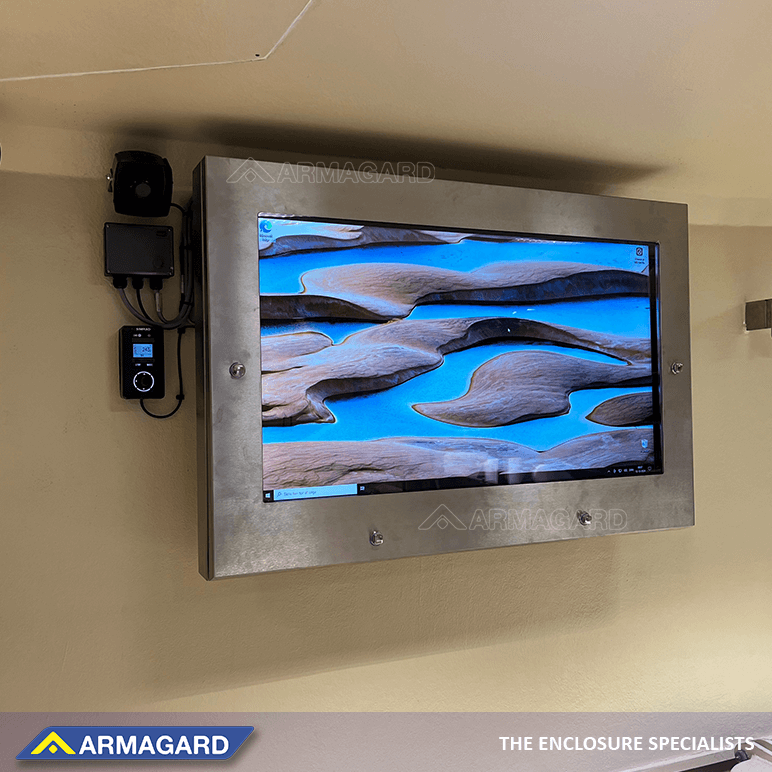

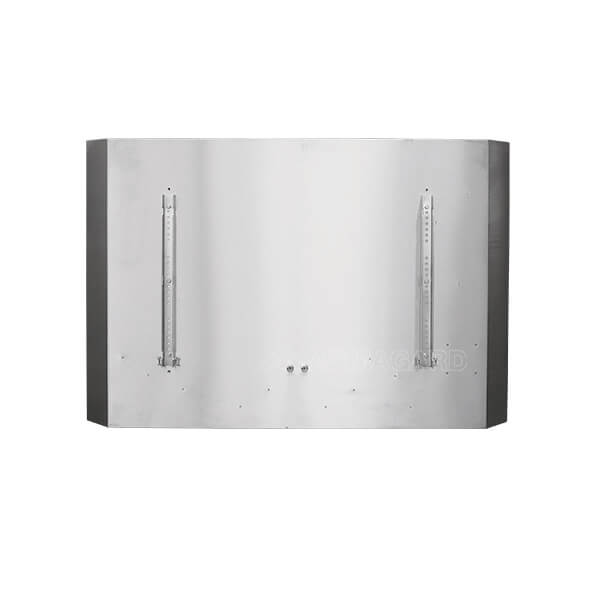

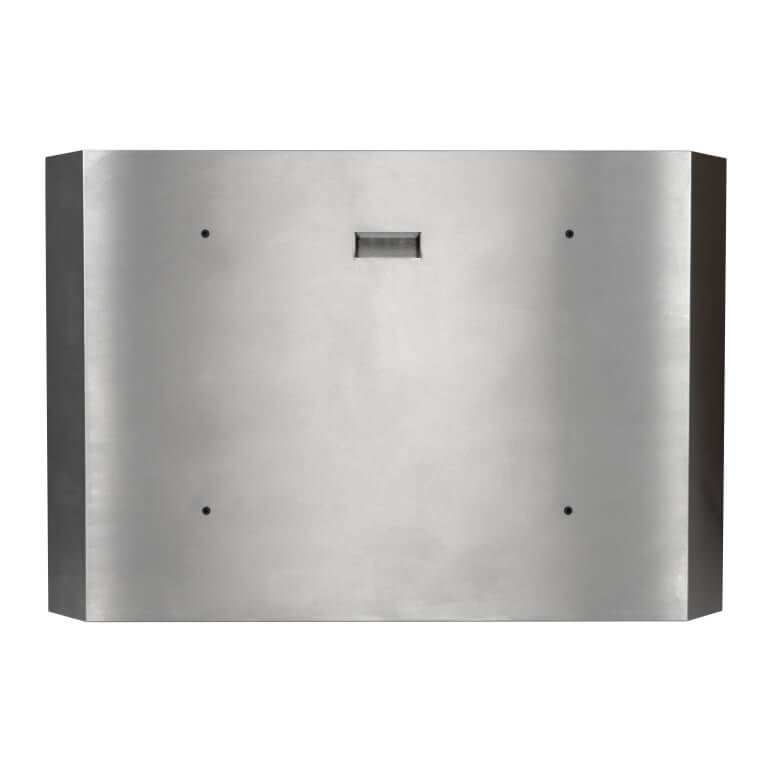

| Mounting Options | Place the IP69K stainless steel monitor in the optimal location above your production line. Choose between ceiling or wall mounting options and select from flat or tilted wall brackets to achieve the perfect setup. |
For full specifications & prices - Contact Us Now!
Specifications And Guarantees
- Five-Year Warranty on all Mechanical Parts
- One-Year Electrical Warranty, with a Five-Year Extended Warranty Available
- Informed and Helpful Support Staff
- High-Quality Engineering
- 30 Years of International Industry Experience
- Excellent, Ongoing Customer Service
- Lifetime Technical Support
