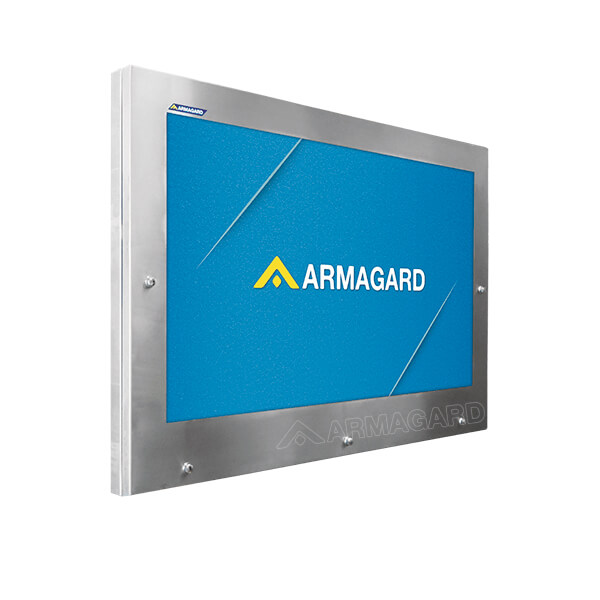

Industrial IP69K Display

Safely Install Large-Format 65" Screens In Washdown Facilities

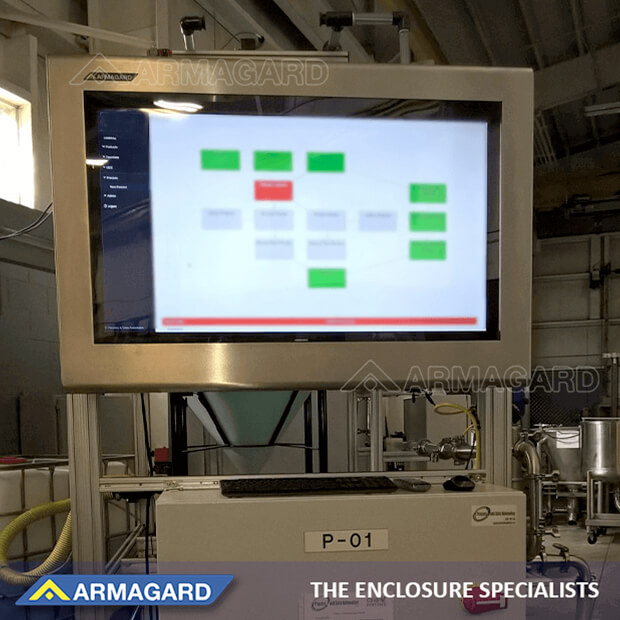

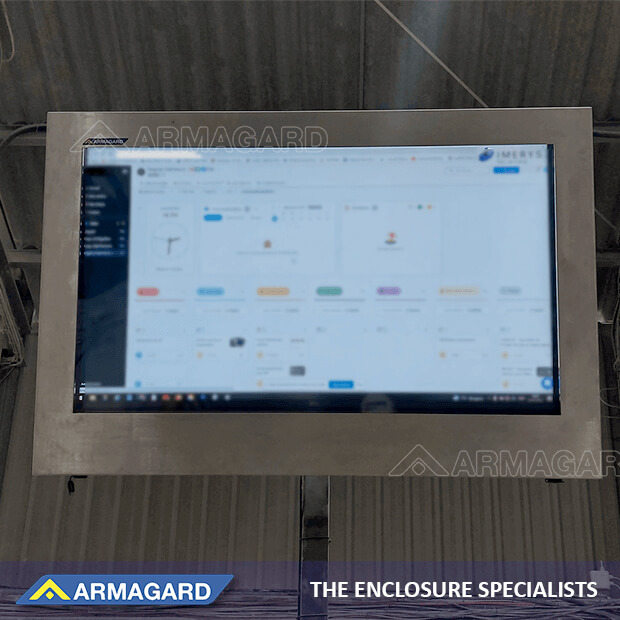

Improve communication on the processing floor with the industrial IP69K display. This waterproof TV enclosure protects large-format screens in harsh locations. You benefit from reliable KPI boards that boost productivity in demanding environments. The IP69K rating ensures maximum hygiene by letting you thoroughly clean the enclosure of food debris with high-pressure, high-temperature jets.

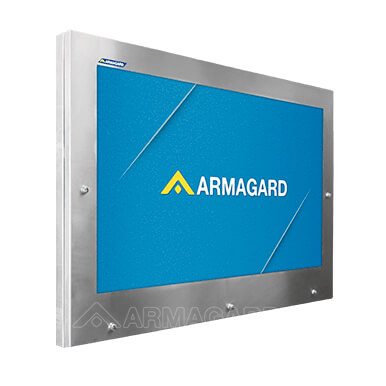

Industrial IP69K display

Click thumbnails for larger images:


    Ideal For:

  • Food and Beverage Manufacturing
  • Pharmaceutical Applications
  • Chemical Manufacturing
  • Petrochemical Plants
  • Waste Treatment

At A Glance:

Screen Size:

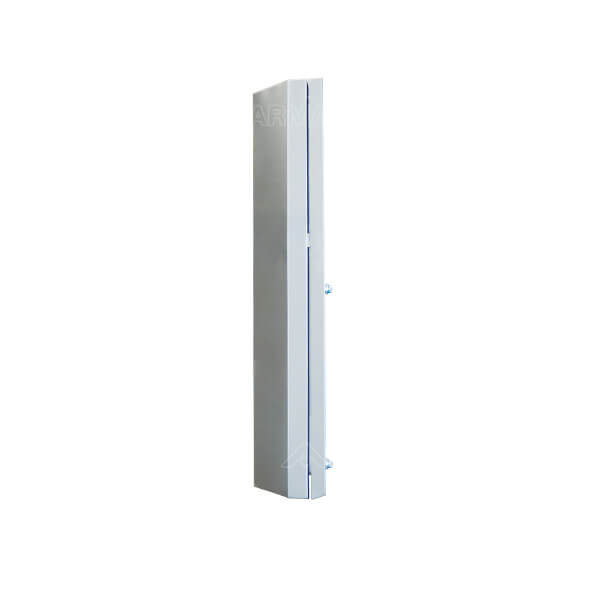

Size (H×W×D) mm:
1081 × 1635 × 191
316 Stainless Steel
IP Rating:
Ceiling or Wall
Product Code:

Industrial IP69K Display With Food-Grade Construction

Eliminate bacteria and enjoy peace of mind about the cleanliness of your food or pharmaceutical plant. The 316 stainless-steel body is antibacterial and corrosion resistant — ideal for any industry governed by sanitation standards. Hygiene-rated seals and cable glands maintain the IP69K rating, allowing you to carry out safe daily cleaning with pressure washers and harsh chemical agents.

The industrial IP69K display makes a great long-term investment and offers a low total cost of ownership. The enclosure maximises the lifespan and reliability of your LCD screens, saving you time and money. An expected 10-year lifespan lets you use the same enclosure to protect successive screens over several years, making it highly cost-effective.

For full specifications & prices - Contact Us Now!

Features And Benefits

Features Benefits

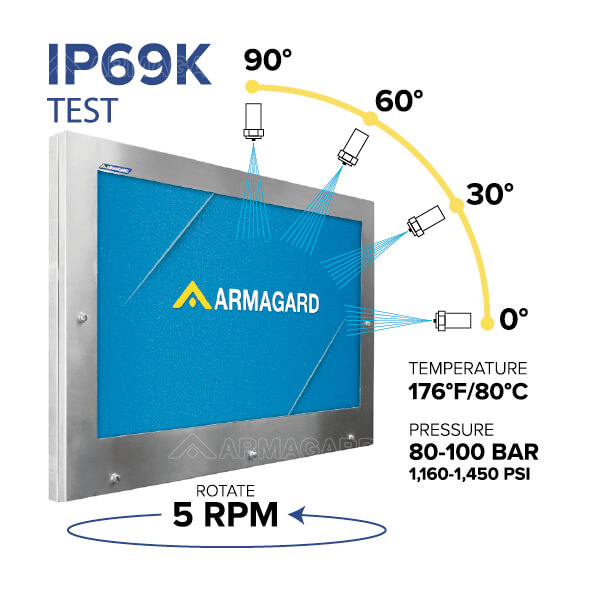

IP69K Rating Safely install a 65" screen in facilities with daily washdown. You can pressure wash the enclosure at 80 to 100 bar/1,160 to 1,450 PSI, in phases of 14 to 16 l/min, and at temperatures up to 80°C.
Hygiene-Rated Seals and Stainless-Steel Cable Glands Washdown-ready components guarantee a watertight system, giving you confidence in the reliability of your screen in any wet location.
Food Grade (316) Stainless Steel Use the industrial IP69K display with peace of mind in germ-free industries. The 316 stainless-steel body is antibacterial and corrosion resistant against disinfectants.

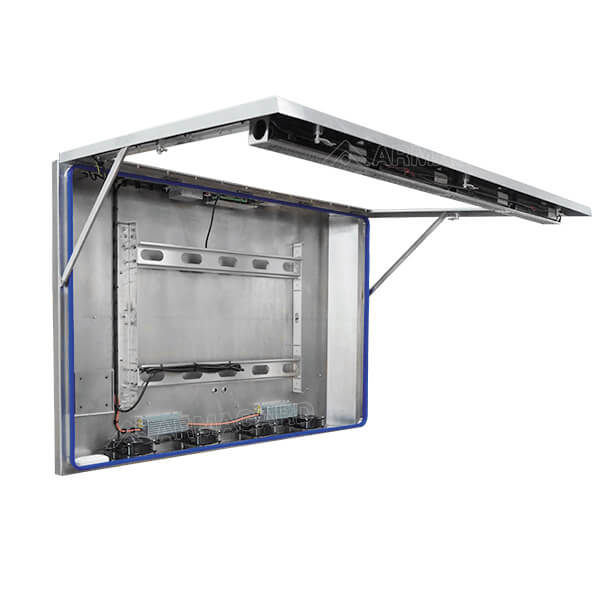

Internal Climate Controls Recirculating fans air-cool the display as standard. Optional heaters allow use in chilled environments. A controller board manages internal temperature, ensuring the screen works safely from -30°C to +35°C when the heater is fitted.
10-mm Polycarbonate Window The thick polycarbonate protects your screen from physical damage. In the unlikely event of a breakage, the shatterproof window won't shard into tiny pieces, which protects your production line from contamination and shutdown.

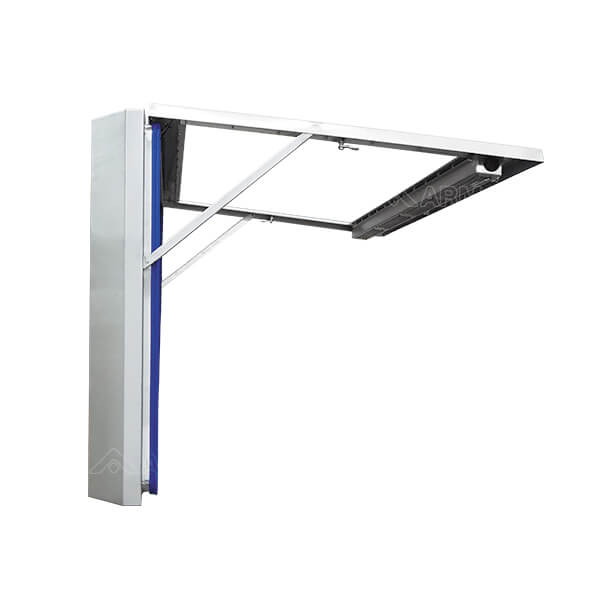

VESA Mounts and Screen Accessibility Use the VESA-ready, 65" screen of your choice. Easy access means you can remove or upgrade the screen without a specialist engineer, saving you time and money.

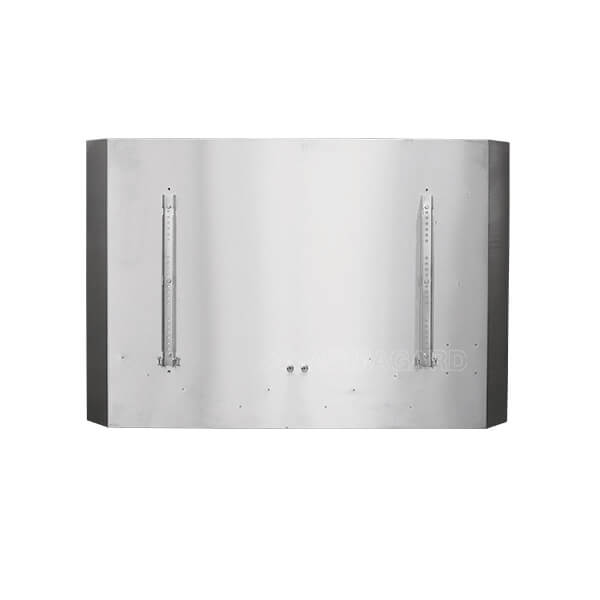

Mounting Options Install IP69K KPI display boards in the ideal location on your production floor. Use ceiling or wall mounting, with optional wall-tilt brackets, to improve communication in your plant.

For full specifications & prices - Contact Us Now!

Specifications And Guarantees

All Armagard enclosures are built in accordance with European IP and International NEMA standards, guaranteeing protection from liquids and particulates.

    5 year warranty, TNT delivery, DSV delivery, CE, and RoHS logos

    We Guarantee:

  • Five-Year Warranty on all Mechanical Parts
  • Informed and Helpful Support Staff
  • High-Quality Engineering
  • Over 30 years of International Industry Experience
  • Excellent, Ongoing Customer Service
  • Lifetime Technical Support
