ATEX PC Workstation

Ex-Certified Computer Enclosure for ATEX Zone 2 Gas Locations

Safely use computers and 24" screens in potentially explosive gas environments. The ATEX PC workstation is a Restricted Breathing (Ex nR) enclosure that limits gas ingress to the internal electronics during normal operation, in accordance with EN IEC 60079-15. Supplied with an integrated display and optional Armagard approved micro-PC configuration, or compatible with customer-supplied equipment subject to Armagard written approval and certified power limits.

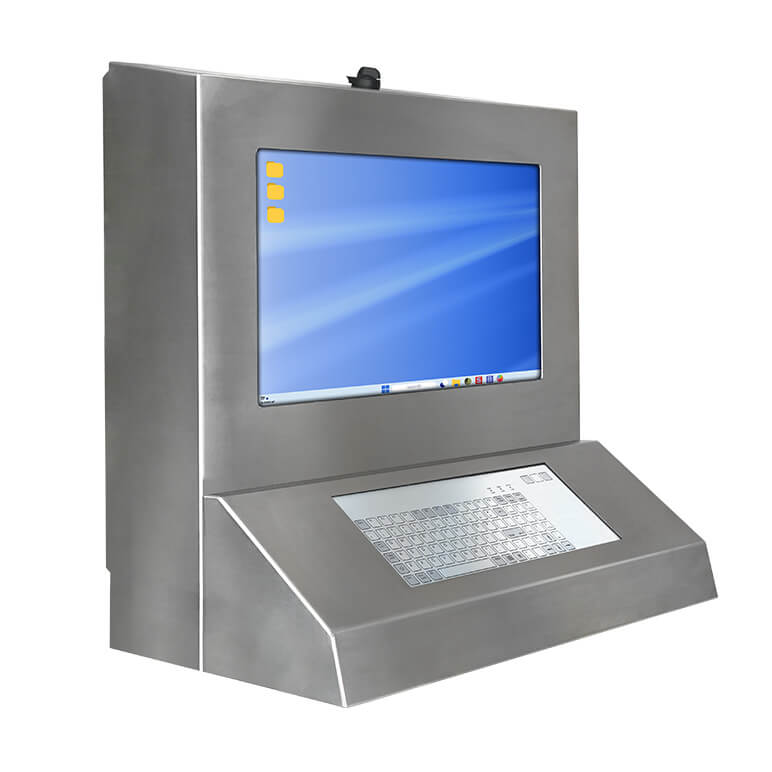

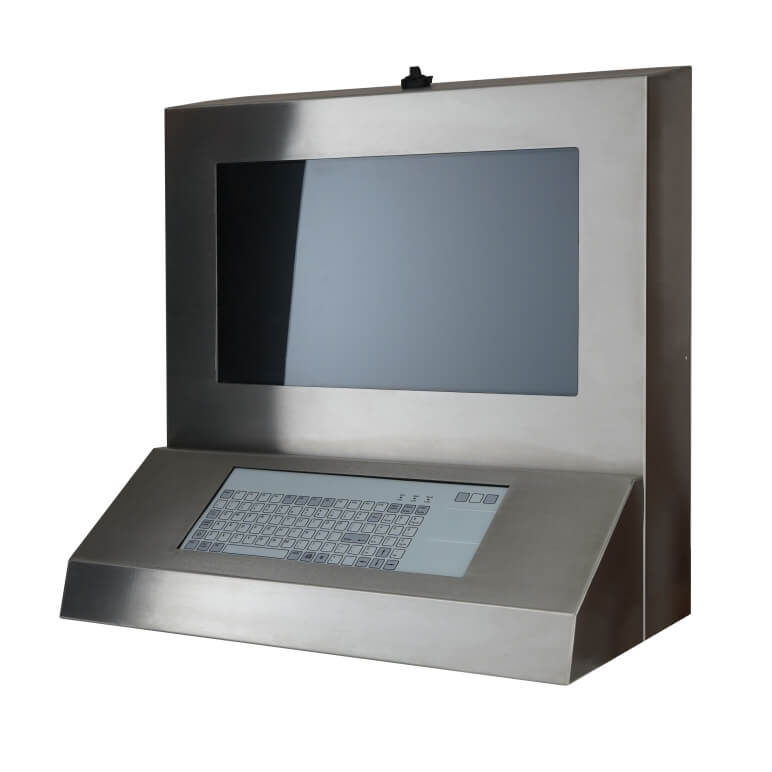

Right-facing view of the ATEX PC workstation

Click thumbnails for larger images:

Request prices

Certification & Marking:

  • ATEX Certificate: CML 25ATEX4402X (Issue 0)
  • Directive: 2014/34/EU
  • Equipment Group / Category: II 3 G
  • Protection Type: Ex nR IIC T4 Gc
  • Ambient Temperature (Ta): 0°C to +35°C
  • Standards: EN IEC 60079-0:2018, EN IEC 60079-15:2019

Ideal For:

  • ATEX Zone 2
  • Gas Plants
  • Petrochemical Facilities
  • Paint Factories

At A Glance:

Size (HxWxD) mm:
700 x 700 x 430
Display Size:
24" Integrated or VESA
Keyboard:
Integrated with Mouse Touchpad
Material:
316 Stainless Steel
IP Rating:
IP66
Mounting:
Wall or Worktop
Product Code:
SATX-24

Washdown-Ready ATEX PC Workstation

Easily meet hygiene standards in your plant thanks to the IP66 rating and 316 (food-grade) stainless-steel body. The Zone 2 ATEX PC cabinet protects internal hardware from water ingress during washdown procedures, when used and maintained in accordance with installation guidelines.

The enclosure is available with an integrated display and available with an optional Armagard approved micro-PC configuration, or can be used with customer-supplied equipment subject to certified power limits and prior written approval from Armagard. Note: Integrated end-user PCs must support an auto power-on function to operate correctly with the external power switch.

This flexibility allows you to update internal computing hardware over time while retaining the certified enclosure, provided all installed components remain within the approved thermal and electrical limits. Over 100,000 Armagard enclosures protect screens and IT hardware worldwide. You get a five-year mechanical warranty and lifetime technical support, for long-term reliability in hazardous environments.

For full specifications & prices — Contact Us Now!

Features & Benefits:

Summary of the features and benefits to consider when choosing an Armagard ATEX PC Workstation.
Feature Benefit
ATEX Zone 2 Certified Protect your staff and facility with Ex-certified computer enclosures compliant with ATEX Directive 2014/34/EU for Zone 2 gas environments.
Available as a Complete Solution The ATEX PC workstation is supplied with an integrated 24" Full-HD 1,500 NITS display, sealed industrial keyboard, and is available with an optional computer configuration. Customer-supplied equipment may also be used subject to certified power limits and prior written approval.
IP66 Rating Sealed to IP66, the dust-tight enclosure protects against environmental residues and powerful water jets from any direction.
316 Stainless Steel Ideal for wet and hygienic environments. The 316 stainless steel construction is suitable for daily washdown when maintained in accordance with installation guidelines.
External Power Switch Turn the PC on and off without opening the enclosure door (subject to integrated PC auto power-on support), which limits gas ingress to the internal electronics during normal operation.
Membrane Touchpad Keyboard Sealed industrial keyboard designed for washdown environments and easy cleaning, reducing debris accumulation between keys.
Internal Cooling Fan Get maximum component longevity and reliability. An internal fan eliminates hot spots and maintains safe internal operating conditions within certified thermal limits.
Wall, Stand or Worktop Mounting Install the Zone 2 ATEX PC in the ideal location in your plant.
For full specifications & prices — Contact Us Now!

Warranty & Guarantees:

ATEX-certified computer enclosure compliant with Directive 2014/34/EU for Zone 2 gas environments. All Armagard enclosures are built in accordance with European IP and international NEMA standards, guaranteeing protection from liquids and particulates.

Why Armagard?

  • High-quality engineering
  • Over 30 years of industry experience
  • More than 100,000 Armagard environmental enclosures protect production and distribution equipment worldwide

Five-year warranty

  • Enclosures carry a five-year warranty on all mechanical hardware and electrical components
  • The display and keyboard carry a 12 month warranty. The computer is covered by the manufacturer’s warranty

Customer service

  • Lifetime technical support
  • Excellent, ongoing customer service
  • Informed and helpful staff
