Robust Plasma Enclosure

Protect Plasma Screens in Public, Commercial and Industrial Environments.

News - To accommodate changing demand for LCD and plasma TVs, Armagard have introduced the 46" Plasma Enclosure into our already huge range. Please contact us for more information.

Able to accommodate screens from 24" to 86", the Plasma Enclosure protects a large variety of commercial screens. With an IP54, IP56 or IP65 and IP66 rating, and robust, mild steel body, the Plasma Enclosure is ideal for digital signage and information boards in outdoor, public and manufacturing locations.

Plasma Enclosure

Click thumbnails for larger images:

Request prices

The Plasma Enclosure Is Ideal For:

  • Outdoor Digital Signage.
  • Bus and Train Stations.
  • Airports.
  • Waiting Rooms.
  • Schools.
  • Industrial Environments.

At A Glance:

Screen Sizes:
24", 27", 32", 42", 43", 46", 47", 49", 52", 55", 60", 65", 70", 72", 75", 85" & 86"
Material:
Powder Coated Mild Steel
IP Rating:
IP54, IP56, or IP66
IP65 available on request
Mounting:
Wall, Ceiling or Stand
Product Code:
PDS18-W-L

Product Videos:

Features & Benefits:

With a range of security, weather protection and impact resistance features, the Plasma Enclosure is ideal for protecting your expensive screen in public, unattended locations.

Your Plasma Screen Is Protected Against:

  • Bad weather — Benefit from a plasma display in any outdoor location and in all conditions.
  • Dust and airborne particulates — Ideal for protecting your investment in industrial locations.
  • Physical impact — Resistance to damage, means reduced repair costs and a greater ROI.
  • Theft — Lock options give you peace of mind about your investment in public locations.
  • Electrical surges — Extends the life of components and prevents system crashes, ensuring maximum uptime.
  • Extreme temperatures — No need to buy additional heating or air conditioning units, so you save money.
For full specifications & prices — Contact Us Now!

Specifications:

For reliable protection from dust and water, Armagard's Plasma Enclosures adhere to European IP standards. With a mild or stainless steel body, and shatterproof screen that's 10x stronger than glass, Armagard's enclosures are delivered fully assembled for easy installation via wall, ceiling or pedestal mounts (sold separately).

Built from mild or stainless steel with a shatterproof screen Armagard Plasma enclosures are shipped complete with Screen mounting brackets, wall mounting brackets are optional extra's.

Armagard Plasma Enclosures - all in one digital signage protection.

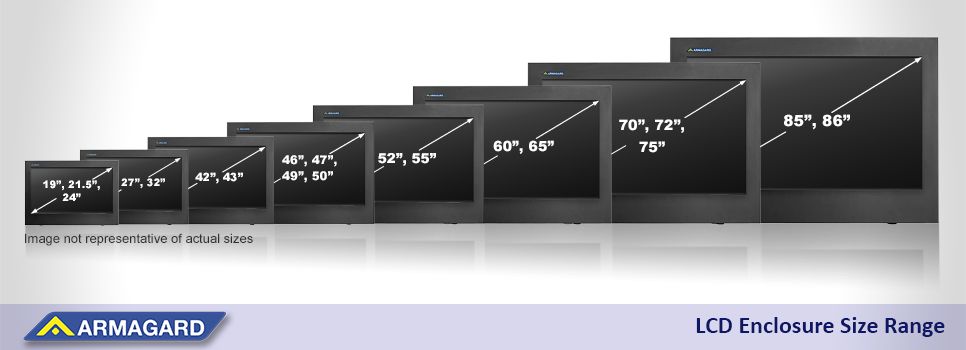

Armagard LCD Enclosures PDS-series sizes
Table describing the Size (H x W x D), for the Armagard Plasma Enclosure.
Screen Size: Dimensions H × W × D: Product Code: Screenprint:
24" 510 × 710 × 180 mm PDS18-24-W-L
27" 595 × 881 × 213 mm PDS18-32-W-L ✓
32" 595 × 881 × 213 mm PDS18-32-W-L
42" 775 × 1140 × 205 mm PDS18-43-W-L
43" 775 × 1140 × 205 mm PDS18-43-W-L
46" 830 × 1270 × 235 mm PDS18-49-W-L ✓
47" 830 × 1270 × 235 mm PDS18-49-W-L ✓
49" 830 × 1270 × 235 mm PDS18-49-W-L
52" 940 × 1410 × 235 mm PDS18-55-W-L ✓
55" 940 × 1410 × 235 mm PDS18-55-W-L
60" 1080 × 1635 × 190 mm PDS18-65-W-L ✓
65" 1080 × 1635 × 190 mm PDS18-65-W-L
70" 1215 × 1865 × 235 mm PDS18-75-W-L ✓
72" 1215 × 1865 × 235 mm PDS18-75-W-L ✓
75" 1215 × 1865 × 235 mm PDS18-75-W-L
85" 2150 × 1332 × 210 mm PDS18-86-W-L
86" 2150 × 1332 × 210 mm PDS18-86-W-L

Note: Enclosure sizing is based on a Standard model configuration and overall enclosure dimensions. Some sizes require a screenprint to reduce the viewing window size.

For full specifications & prices — Contact Us Now!

Compatible Brand Display Types:

Brand Series Models Compatible
Samsung
UJ590
Samsung UJ590 (32")
✓
Samsung
OMB
Samsung LH55OMBEBGBXEN* (55") Samsung OMB55* (55")
✓
Samsung
OMN
Samsung OMN55* (55")
✓
Samsung
QMB
Samsung QM55B* (55") Samsung QM65B* (65")
✓
Samsung
QMC
Samsung QM55C* (55") Samsung QM75C* (75")
✓
Samsung
QMR
Samsung QM65R* (65")
✓
Samsung
Q7F
Samsung QE55Q7F2AUXXN* (55")
✓
Samsung
Q67D
Samsung TQ55Q67DBUXXC* (55")
✓
Samsung
S95D
Samsung TQ65S95DATXXC* (65")
✓
Samsung
DU7100
Samsung UE60DU7100* (60")
✓
Samsung
CU7100
Samsung TU75CU7105KXXC* (75")
✓
Samsung
U8000
Samsung UE85U8000FKXXU (85")
✓
LG
XS2E
LG 49XS2E* (49") LG 75XS2E (75")
✓
LG
XS4F
LG 49XS4F-B* (49")
✓
LG
XS4G
LG 55XS4G-B* (55") LG 75XS4G-B (75")
✓
LG
UH5F
LG 65UH5F-HJ* (65")
✓
LG
UR640S
LG 65UR640S9UD (65")
✓
LG
UN640S
LG 75UN640S* (75")
✓
LG
QNED70
LG QNED70 AI QNED TV* (70")
✓
LG
UR87
LG UR87 AI UHD TV* (70")
✓
Sony
BRAVIA 8 II
Sony BRAVIA 8 II* (65")
✓
Sony
BRAVIA XR
Sony K-85XR90* (85")
✓
Sharp NEC
MultiSync EA
Sharp NEC EA272U (27")
✓
Sharp
PN-M
Sharp PN-M432 (43") Sharp PN-M752* (75")
✓
Sharp
XHB
Sharp X554HB (55")
✓
Hisense
E7Q
Hisense 65E7Q QLED AI TV(65")
✓
Vestel
PR
Vestel PR65 (65")
✓
Dahua
LDH
Dahua DHI-LDH43-SAI400K (43")
✓
Hikvision
DS-D
Hikvision DS-D6075UN* (75")
✓
DynaScan
DS
DynaScan DS751LT4 (75")
✓
Iiyama
LH
Iiyama LH7554UHS-B1AG* (75")
✓
SunBriteTV
Veranda Series 3
SunBriteTV Veranda Series 3 (55")
✓

Many legacy display models are also supported, check dimensions with your account manager.

* The Slim Kit allows the display to sit deeper within the enclosure.

Warranty & Guarantees:

All Armagard enclosures are built in accordance with European IP and International NEMA standards, guaranteeing protection from liquids and particulates.
