Armagard Double outdoor digital totem

Advertise from all angles!

The Armagard double outdoor digital totem is manufactured from powder coated mild steel to reduce physical damage. Enclosed against liquid ingress to IP56/65 standards and utilizing patented air curtain technology to prevent screen overheating, the totem protects your digital signage in harsh weather conditions and temperatures ranging from -30°C to 55°C.

Complete with a 5-year warranty, the double-sided totem protects your displays for up to a decade, allowing you to maximise your full advertising potential. Dual advertising upsells your products and services, ensuring you benefit from increased sales revenue that maximises profits. The double monolith totem is compatible with most professional VESA displays.

Double outdoor digital totem

Click thumbnails for larger images:

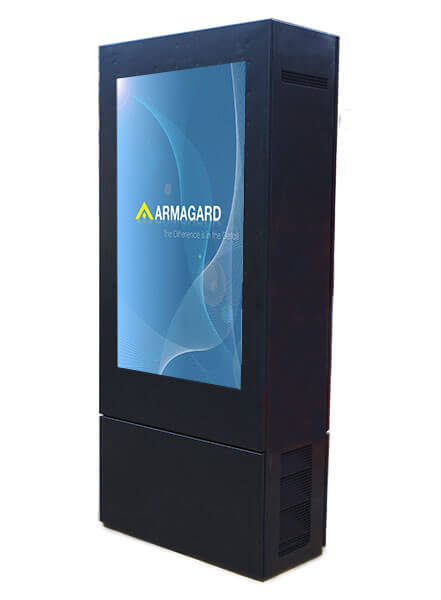

  • Double outdoor digital totem View from the left

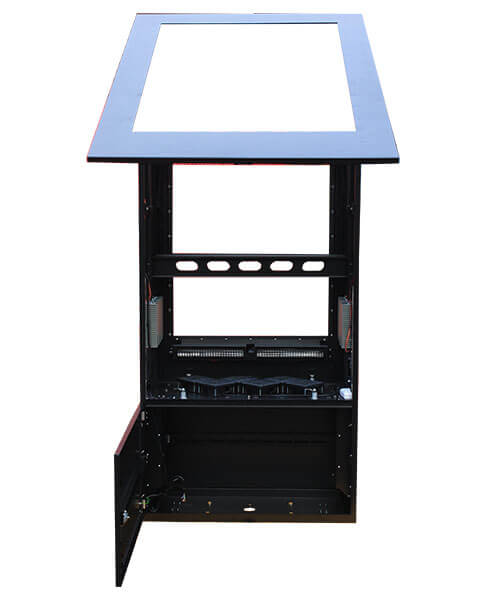

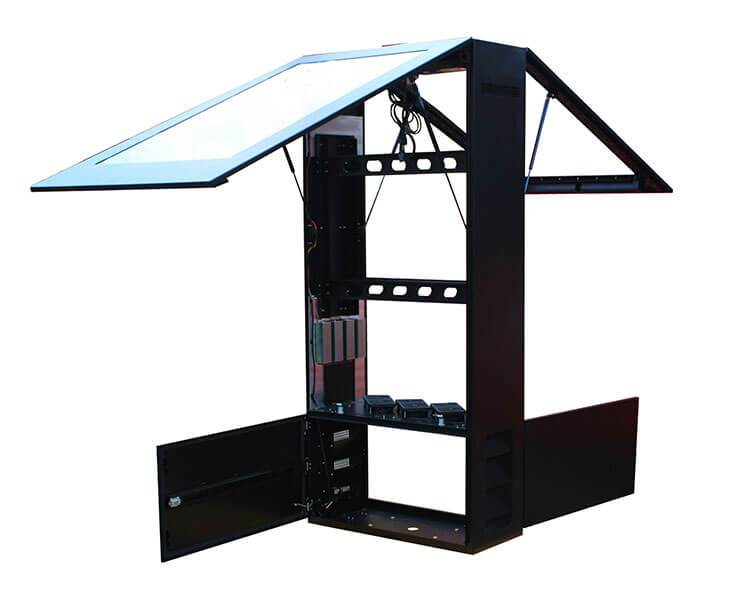

  • Double outdoor digital totem with doors open

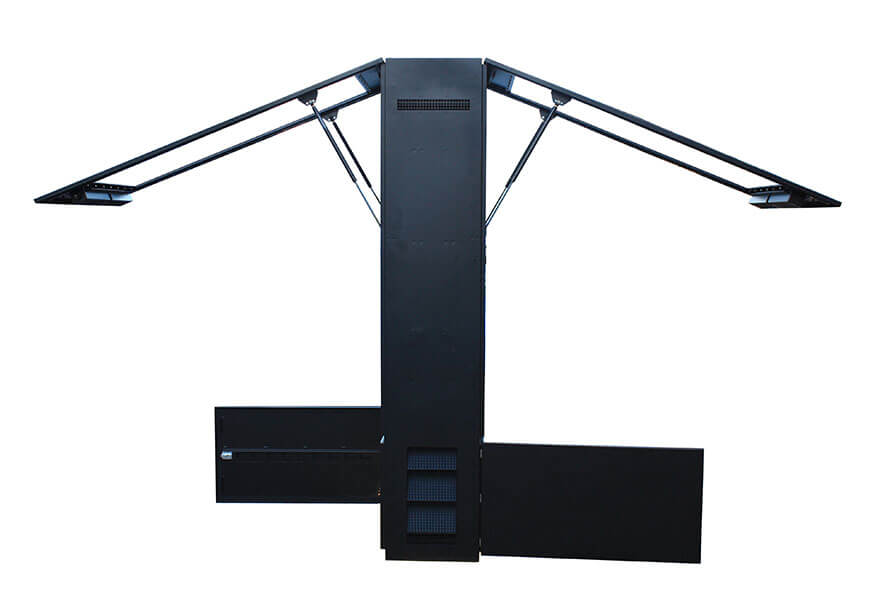

  • Double outdoor digital totem view of the side

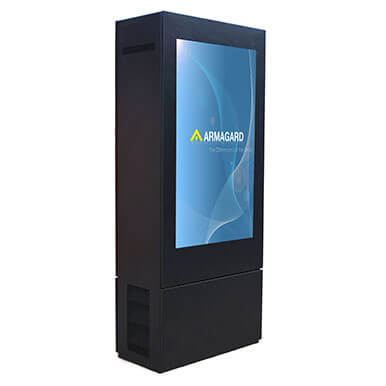

  • Double outdoor digital totem View of the front

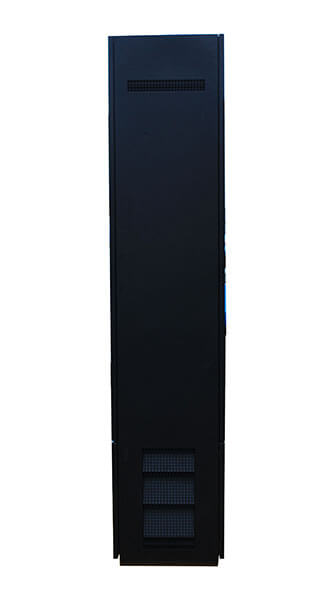

  • Double outdoor digital totem side shot

REQUEST PRICES »

    Double Outdoor Digital Totem is Ideal for:

  • Retail Outlets
  • Supermarkets
  • Car Parks
  • Hotels
  • Transport Hubs
  • University Campuses
  • Wayfinding

At a glance:

(HxWxD)mm:
See table below
Screen Size:
Sizes: 55” or 75"
Material:
Powder Coated Mild Steel (Black)
Anti-Reflective Window:
4mm, Toughened Glass
IP rating:
IP56/65
Product Code:
PDS-55/75-TD-P-MO-CB2-M*

A complete solution

The double monolith totem can be supplied as a complete solution. High bright screens are available between 2,000 and 3,500 Nits and can be easily swapped out and upgraded as needed, and a network media player enables you to advertise in a wide range of formats (MPEG 1, 2, and 4, MP3, and JPEG). This represents an excellent return on investment compared with all-in-one displays.

Features & Benefits:

  • Protected from -30°C to 55°C with internal heating and optional air conditioning - the enclosure protects your displays in extreme hot and cold temperatures, at any time of the year.
  • Protected against liquid ingress to IP56/65 standards - the enclosure protects your displays in wet conditions, even in the extreme winter months.
  • Patented air curtain technology – air temperature is kept consistent throughout, reducing the risk of damage from heat spots.
  • Compatible with most professional VESA displays - eliminates the cost of having to invest in new screens.
  • Lasts up to a decade - swap, change, or upgrade screens as many times as you need without having to invest in new housing.
  • Non-visible, dual security locks - your screens are resistant to tampering.

For full specifications & prices - Contact Us Now!

Specifications:

Armagard Double outdoor digital totem - Dimensions.

Size: 55" 75"
Dimensions: Height x Width x Depth (mm) 2100 x 910 x 445 2700 x 1250 x 500
Temperature Range (dependant on model) -30°C to 55°C -30°C to 55°C
Colour Black Black
IP Rating 56/65 56/65
Minimum Power (watts) 865 1362

Armagard double outdoor digital totems are constructed according to European IP and International NEMA standards, ensuring protection from water and dust. Built from mild or stainless steel with a shatterproof screen Armagard LCD enclosures are shipped complete with screen mounting brackets, wall mounting brackets are optional extra's.

For full specifications & prices - Contact Us Now!

    5 year warranty, TNT delivery, DSV delivery, CE, and RoHS logos

    We guarantee:

  • 5 Year Warranty of all Mechanical Parts
  • Fast Delivery
  • Informed and Helpful Staff
  • High Quality Engineering
  • Over 14 Years of Industry Experience
