Waterproof Monitor Enclosure

Protection for LCD Monitors and Screens in Outdoor and Washdown Environments

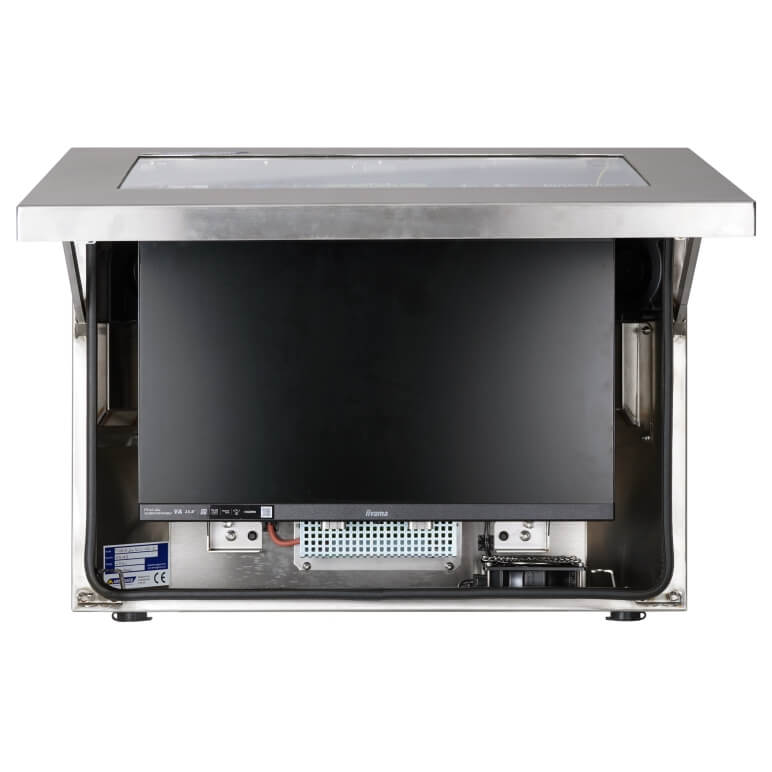

The food grade (316) stainless steel Waterproof Monitor Enclosure protects 24" LCD monitors and small TVs from water ingress. Designed for use in washdown facilities or wet climates, the SDS-24 Enclosure System is corrosion resistant and has anti-bacterial properties. Simply affix screens in the enclosure using universal VESA 100 and 200 mounts.

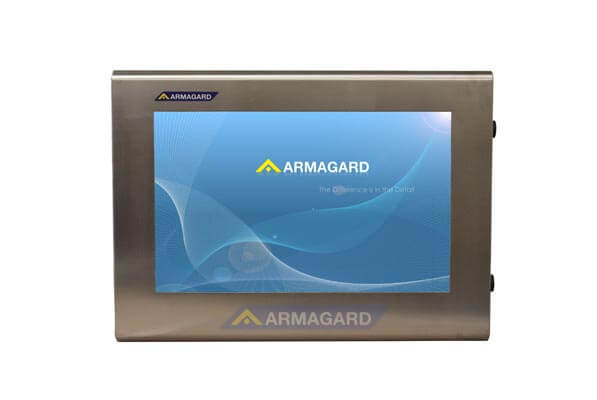

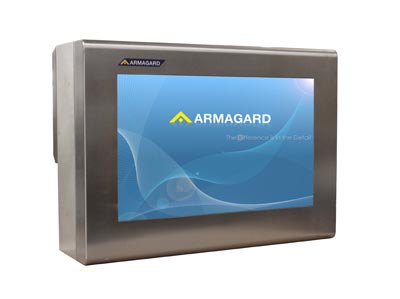

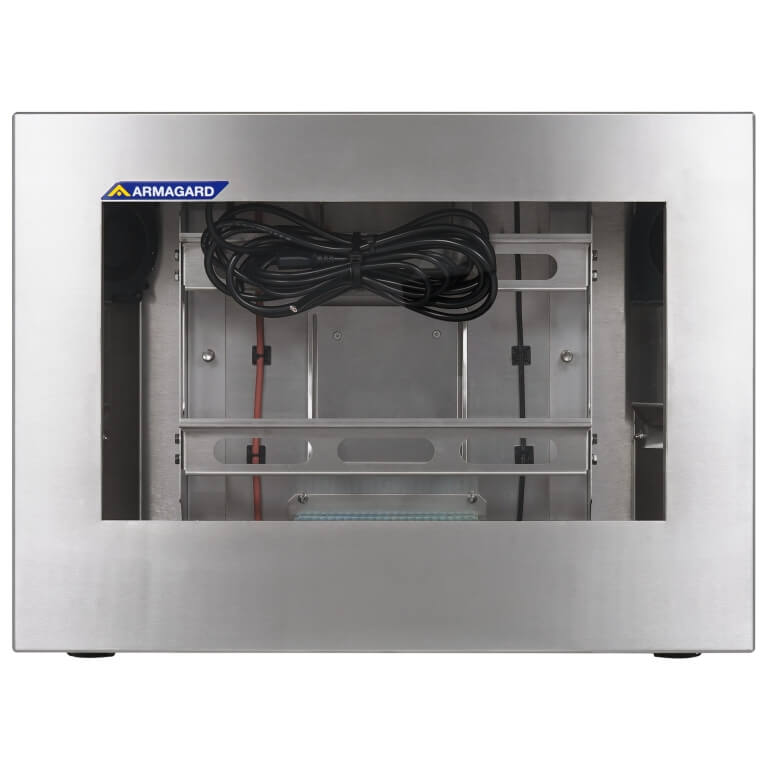

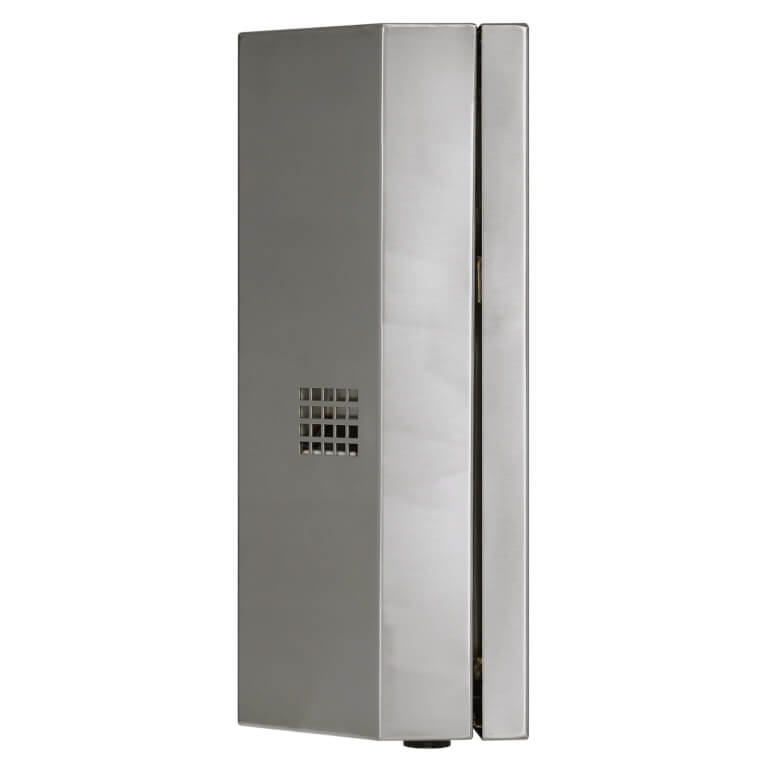

Waterproof monitor enclosure by Armagard

Click thumbnails for larger images:

Request prices

Ideal For:

  • Food Manufacturing Operations.
  • Clean Room Environments.
  • Medical Facilities.
  • Laboratories.

At A Glance:

Screen Size:
24" and 27", 32", 42", 43", 46", 47", 49", 52", 55", 60", 65", 70", 72", 75", 85" & 86"
Enclosure Material:
316 Stainless Steel (food grade)
IP Rating:
IP54, IP56, or IP66
IP65 available on request
Mounting Options:
Wall, Ceiling, or Stand Mounted
Flat or Tilt Mount Available
Product Code:
SDS18-24-W-L

Features & Benefits:

Lockable, secure and sealed to IP54, IP56, or IP66* an Armagard Waterproof Monitor Enclosure offers the best solution to protect your LCD monitor or digital signage from theft or vandalism, or from wet, damp, outdoor conditions or industrial environments.

Your LCD monitor is protected against:

  • Light or heavy rainfall and jet washdown - ideal for outdoor locations.
  • Dust and small particulates - ideal for industrial environments.
  • Electrical surges - making computer crashes a thing of the past.
  • Physical impact - cutting down on repairs and accidents.
  • Temperature extremes - saving you money on additional heaters or air conditioning.
  • Theft - enabling peace of mind.

*IP65 available on request

For full specifications & prices — Contact Us Now!

Specifications:

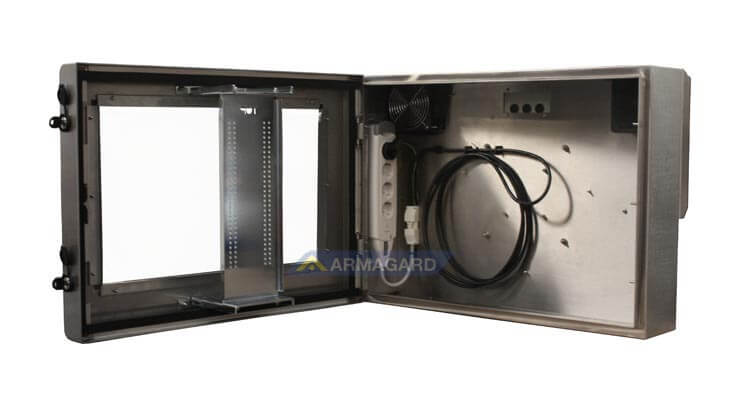

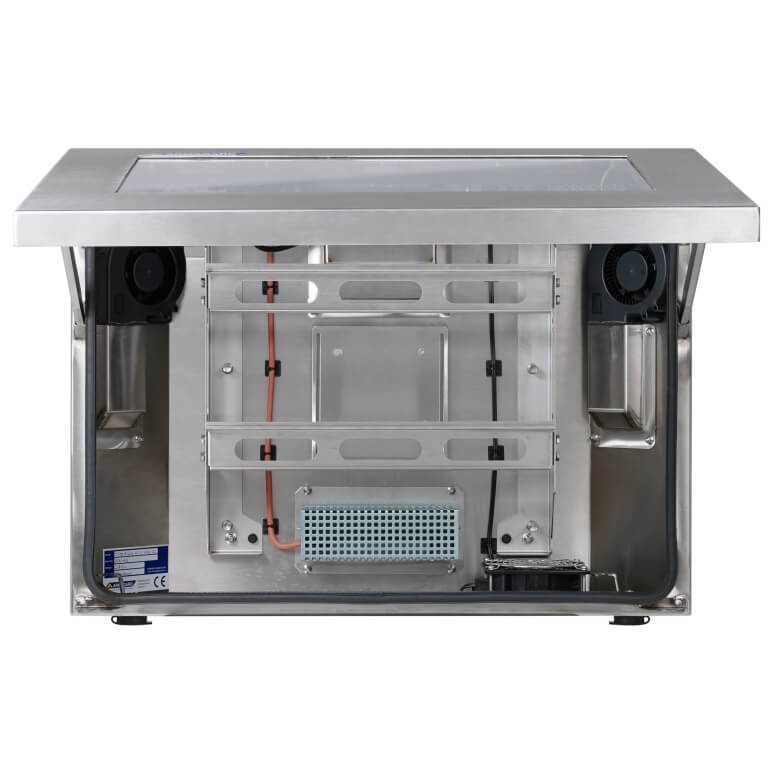

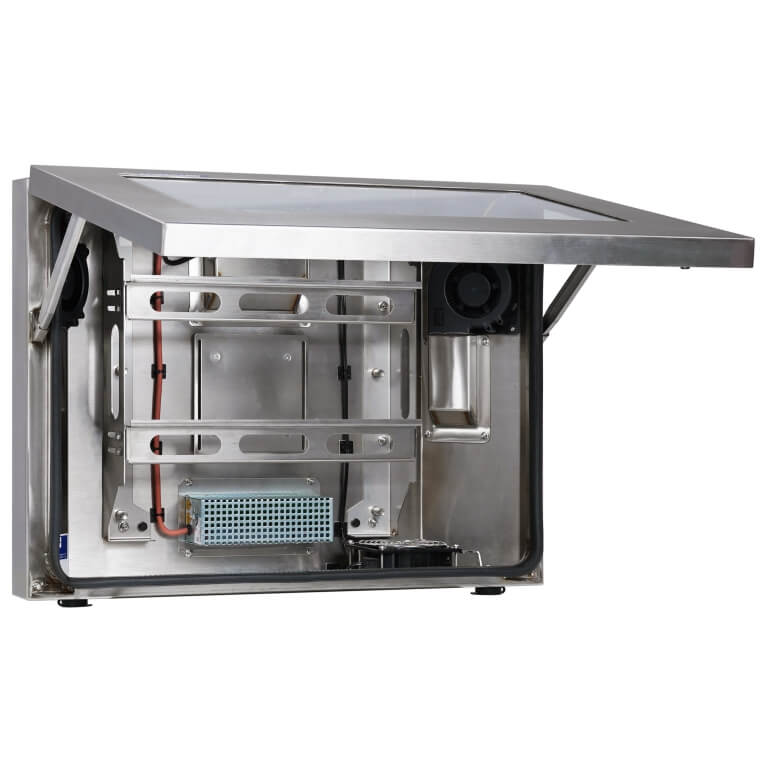

Armagard Waterproof Monitor Enclosures are constructed according to European IP standards, ensuring protection from water, dust and small particulates. Built from stainless steel (316) with a shatterproof screen, Armagard LCD Enclosures are shipped ready assembled with internal monitor brackets and can be mounted using wall brackets or by a ceiling or pedestal mount (wall brackets and mounts sold separately).

Sizes for Armagard's SDS waterproof monitor enclosure range
Table describing the Size (H x W x D), for the Armagard SDS waterproof monitor enclosure range.
Screen Size: Dimensions H × W × D: Product Code: Screenprint:
24" 510 × 700 × 207 mm SDS18-24-W-L
27" 595 × 881 × 213 mm SDS18-32-W-L ✓
32" 595 × 881 × 213 mm SDS18-32-W-L
42" 775 × 1140 × 205 mm SDS18-43-W-L
43" 775 × 1140 × 205 mm SDS18-43-W-L
46" 830 × 1270 × 235 mm SDS18-49-W-L ✓
47" 830 × 1270 × 235 mm SDS18-49-W-L ✓
49" 830 × 1270 × 235 mm SDS18-49-W-L
52" 940 × 1410 × 235 mm SDS18-55-W-L ✓
55" 940 × 1410 × 235 mm SDS18-55-W-L
60" 1080 × 1635 × 190 mm SDS18-65-W-L ✓
65" 1080 × 1635 × 190 mm SDS18-65-W-L
70" 1215 × 1865 × 235 mm SDS18-75-W-L ✓
72" 1215 × 1865 × 235 mm SDS18-75-W-L ✓
75" 1215 × 1865 × 235 mm SDS18-75-W-L
85" 2150 × 1330 × 192 mm SDS18-86-W-L
86" 2150 × 1330 × 192 mm SDS18-86-W-L

Note: Enclosure sizing is based on a Standard model configuration and overall enclosure dimensions. Some sizes require a screenprint to reduce the viewing window size.

Warranty & Guarantees:

All Armagard enclosures are built in accordance with European IP and International NEMA standards, guaranteeing protection from liquids and particulates.

Why Armagard?

  • High quality engineering
  • Over 30 years of industry experience
  • More than 100,000 Armagard enclosures protect production and distribution equipment

Five-year warranty

  • Enclosures carry a five-year warranty on all mechanical hardware and electrical components

Customer service

  • Lifetime technical support
  • Excellent ongoing customer service
  • Informed and helpful staff
