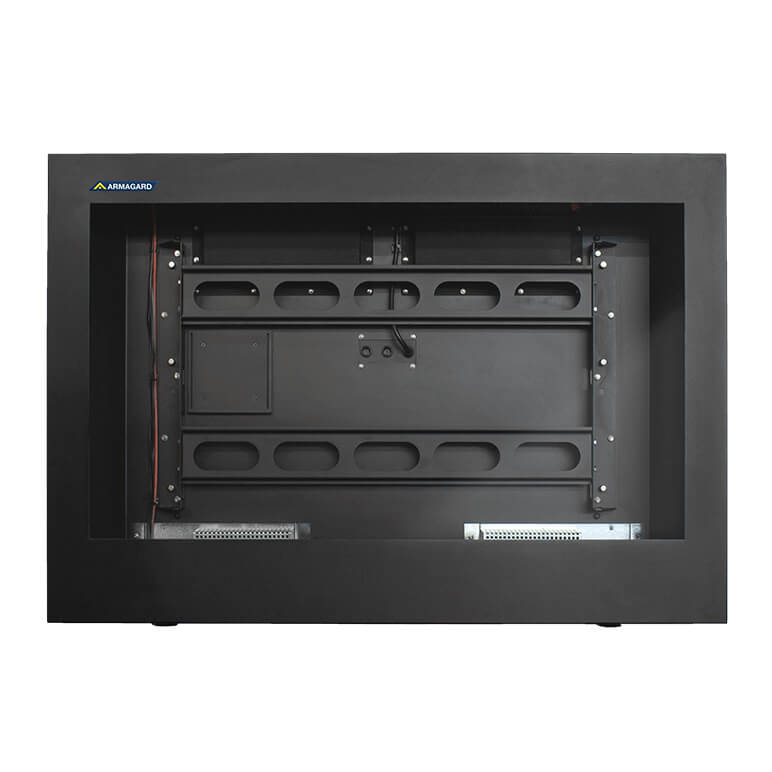

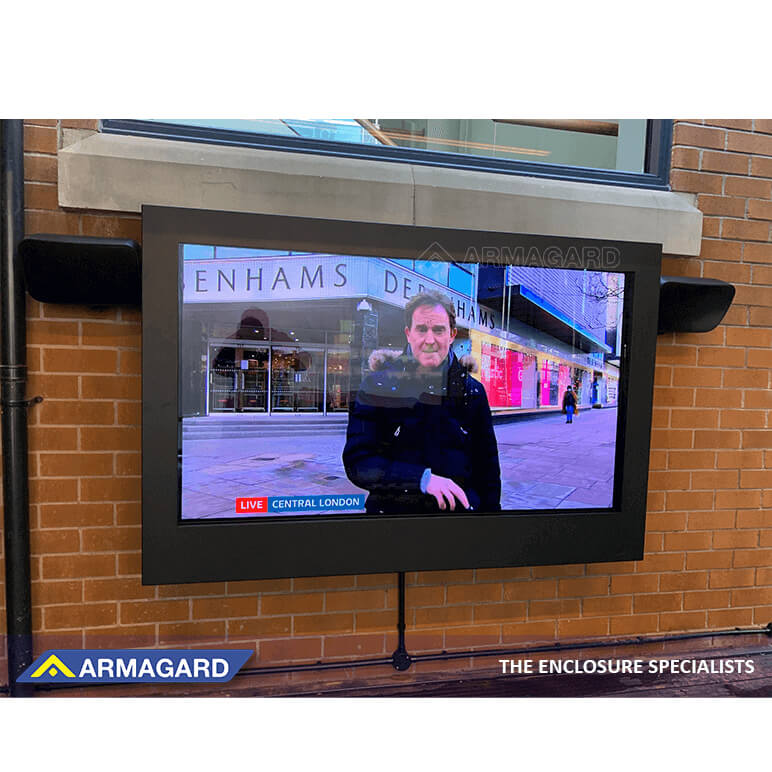

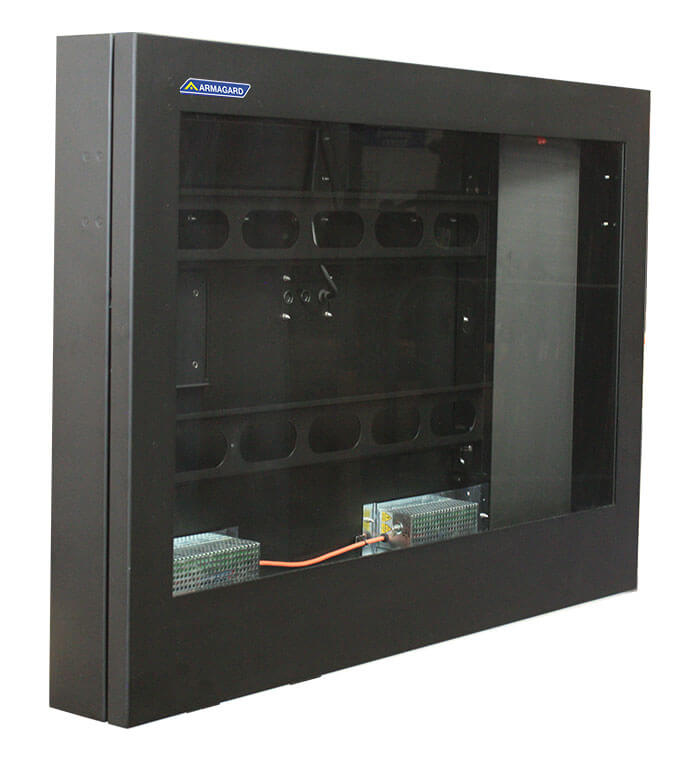

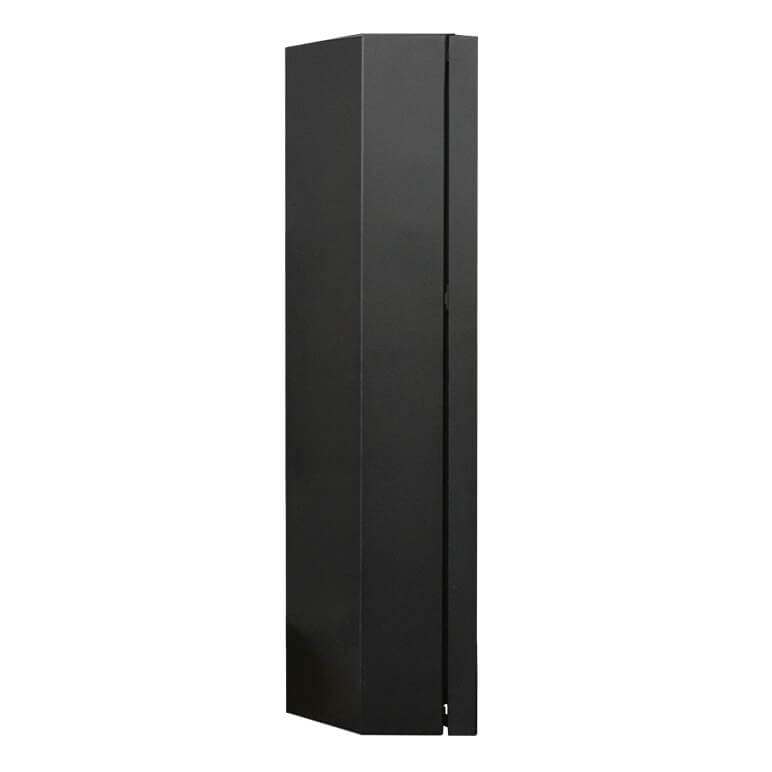

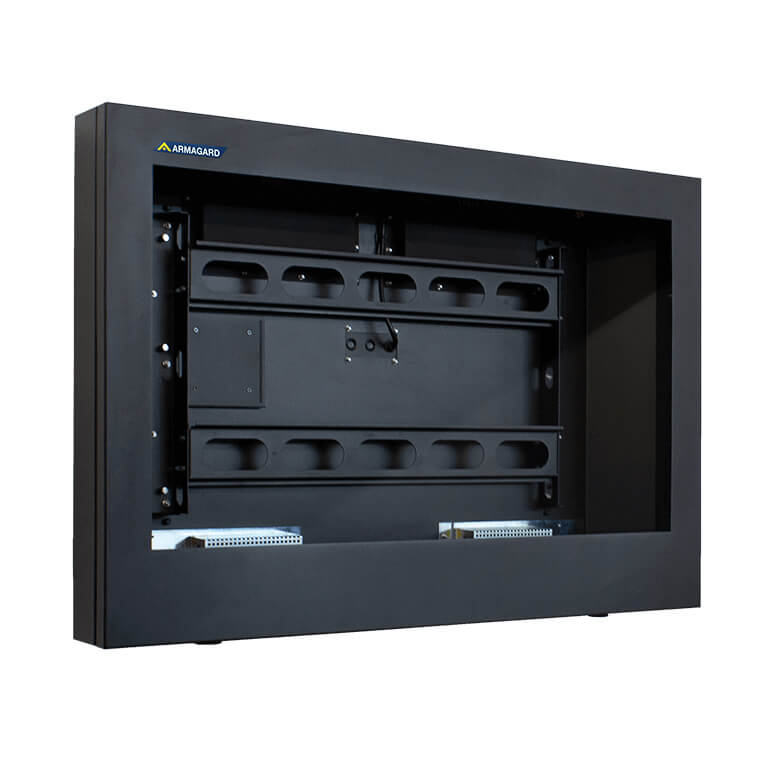

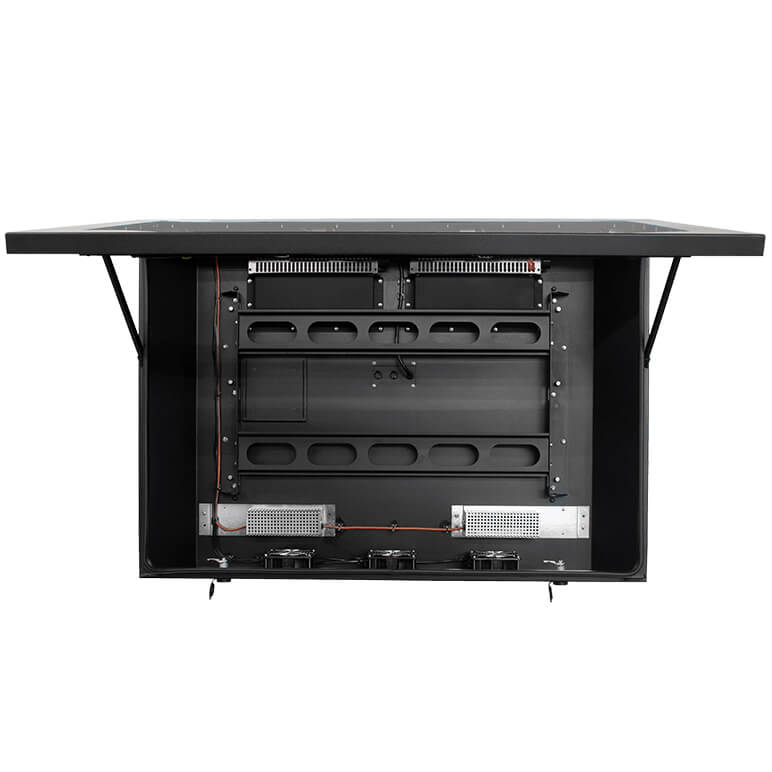

Slimline Professional Outdoor LED Display Enclosure

Professional LED Enclosure Protects Displays From Water, Dust And Physical Impact.

With a sleek design and advanced, protective features, the slimline professional outdoor LED display enclosure protects displays and looks great at the same time. Ideal for enhancing the look of your digital signage in customer-facing environments. Compatible with VESA mountable, high-bright displays from LG, NEC, Samsung, Dynascan and more.

With an IP54, 56 or 65 rating, and a mild steel body, the enclosure protects displays from water, dust, physical damage and theft. With a five-year warranty and expected lifespan of up to ten years, the slimline professional LED display enclosure is a cost-effective alternative to dedicated outdoor displays. Use the display of your choice and upgrade your hardware whenever you want.

Slimline Professional Outdoor LED Display Enclosure

Click thumbnails for larger images:

Request prices

Ideal For:

  • Train Stations.
  • Bus Stops.
  • Airports.
  • Stadiums and Arenas.
  • Schools and Sports Halls.
  • University and College Campuses.

At A Glance:

Size (HxWxD)mm:
See Table below
Material:
Powder Coated Mild Steel
Display Size:
24" to 75"
Mounting:
Wall or stand
IP Rating:
IP54, 56 or 65
Product Code:
PDS18-W-L

Next-Generation Protection For Your Displays

As a new generation design, the slimline outdoor display enclosure delivers improved temperature management and greater airflow efficiency. By maintaining optimum conditions, the enclosure extends the lifespan of your display, reducing the risk of downtime and maximising advertising ROI. The enclosure has a lightweight design, is easy to install and is delivered fully assembled.

Features & Benefits:

Robust, lockable and secure, the slimline enclosure protects your display from the hazards of outdoor and public locations.

The Slimline Professional Outdoor LED Display Enclosure Protects Against:

  • Light and heavy rain — For safe use of displays in outdoor locations.
  • Physical impact — Reduces downtime and repairs caused by accidental and deliberate damage.
  • Dust, dirt and windblown particulates — Ideal for industrial, arid and outdoor locations.
  • Temperature extremes —Displays operate reliably in temperatures ranging from -30°C ~ 55°C.
  • Theft — For peace of mind about the security of your investment in unattended locations.
  • Electrical surges — Eliminates system crashes and ensures components have a long life.
For full specifications & prices — Contact Us Now!

Specifications:

Armagard LED Enclosures - all in one digital signage protection.

Armagard LCD Enclosures PDS-series sizes
Table describing the Size (H x W x D), for the Armagard Slimline Professional Outdoor LED Display Enclosure.
Display Size: Height mm: Width mm: Depth mm:
24" 510 700 208
32" 595 881 214
43" 775 1140 206
47" 830 1230 235
49" 830 1230 235
50" 900 1350 222
52" 900 1350 222
55" 950 1410 235
75" 1215 1865 235
For full specifications & prices — Contact Us Now!

Compatible Brand Display Types:

Brand Series Models Compatible
Samsung
UJ590
Samsung UJ590 (32")
✓
Samsung
OMB
Samsung LH55OMBEBGBXEN* (55") Samsung OMB55* (55")
✓
Samsung
OMN
Samsung OMN55* (55")
✓
Samsung
QMB
Samsung QM55B* (55") Samsung QM65B* (65")
✓
Samsung
QMC
Samsung QM55C* (55") Samsung QM75C* (75")
✓
Samsung
QMR
Samsung QM65R* (65")
✓
Samsung
Q7F
Samsung QE55Q7F2AUXXN* (55")
✓
Samsung
Q67D
Samsung TQ55Q67DBUXXC* (55")
✓
Samsung
S95D
Samsung TQ65S95DATXXC* (65")
✓
Samsung
DU7100
Samsung UE60DU7100* (60")
✓
Samsung
CU7100
Samsung TU75CU7105KXXC* (75")
✓
Samsung
U8000
Samsung UE85U8000FKXXU (85")
✓
LG
XS2E
LG 49XS2E* (49") LG 75XS2E (75")
✓
LG
XS4F
LG 49XS4F-B* (49")
✓
LG
XS4G
LG 55XS4G-B* (55") LG 75XS4G-B (75")
✓
LG
UH5F
LG 65UH5F-HJ* (65")
✓
LG
UR640S
LG 65UR640S9UD (65")
✓
LG
UN640S
LG 75UN640S* (75")
✓
LG
QNED70
LG QNED70 AI QNED TV* (70")
✓
LG
UR87
LG UR87 AI UHD TV* (70")
✓
Sony
BRAVIA 8 II
Sony BRAVIA 8 II* (65")
✓
Sony
BRAVIA XR
Sony K-85XR90* (85")
✓
Sharp NEC
MultiSync EA
Sharp NEC EA272U (27")
✓
Sharp
PN-M
Sharp PN-M432 (43") Sharp PN-M752* (75")
✓
Sharp
XHB
Sharp X554HB (55")
✓
Hisense
E7Q
Hisense 65E7Q QLED AI TV(65")
✓
Vestel
PR
Vestel PR65 (65")
✓
Dahua
LDH
Dahua DHI-LDH43-SAI400K (43")
✓
Hikvision
DS-D
Hikvision DS-D6075UN* (75")
✓
DynaScan
DS
DynaScan DS751LT4 (75")
✓
Iiyama
LH
Iiyama LH7554UHS-B1AG* (75")
✓
SunBriteTV
Veranda Series 3
SunBriteTV Veranda Series 3 (55")
✓

Many legacy display models are also supported, check dimensions with your account manager.

* The Slim Kit allows the display to sit deeper within the enclosure.

Warranty & Guarantees:

All Armagard enclosures are built in accordance with European IP and International NEMA standards, guaranteeing protection from liquids and particulates.

Why Armagard?

  • High quality engineering
  • Over 30 years of industry experience
  • More than 100,000 Armagard enclosures protect production and distribution equipment

Five-year warranty

  • Enclosures carry a five-year warranty on all mechanical hardware and electrical components

Customer service

  • Lifetime technical support
  • Excellent ongoing customer service
  • Informed and helpful staff
