Waterproof Rack Mount Cabinet

IP65 protection for for Servers and Rackmountable Devices

The Armagard 700 series rackmount server enclosure is a protective cabinet that can house conventional rackmountable equipment up to a maximum capacity of 18U. Built to IP65, this stainless steel server cabinet can protect the enclosed equipment from wet or humid conditions and is ideal for food processing or washdown areas.

Waterproof Rack Mount Cabinet

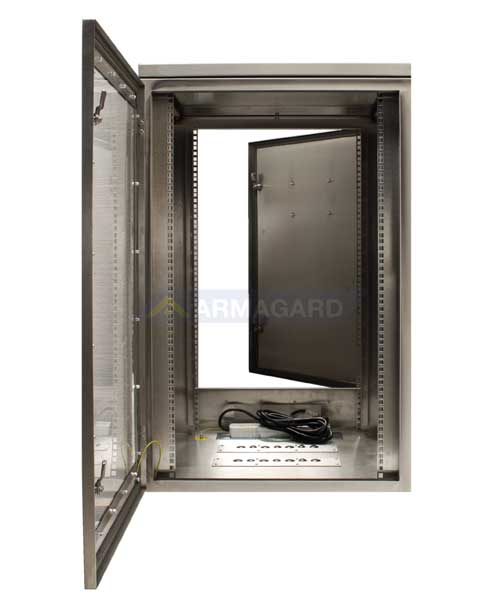

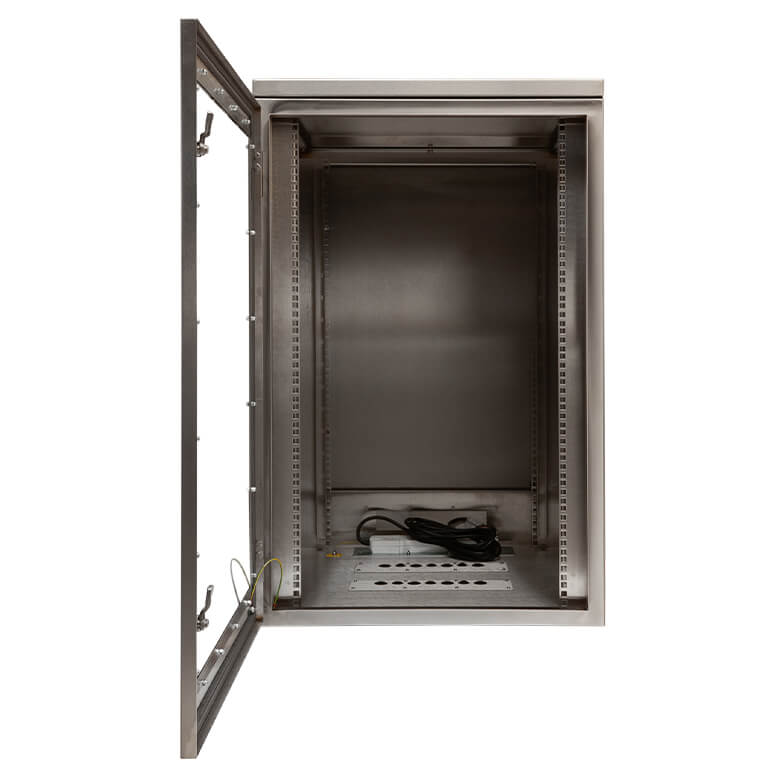

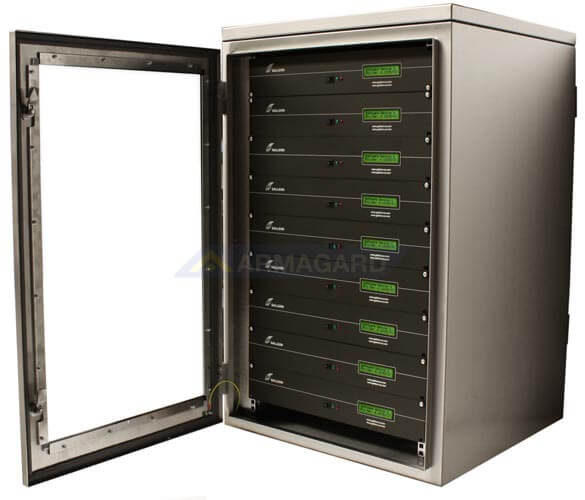

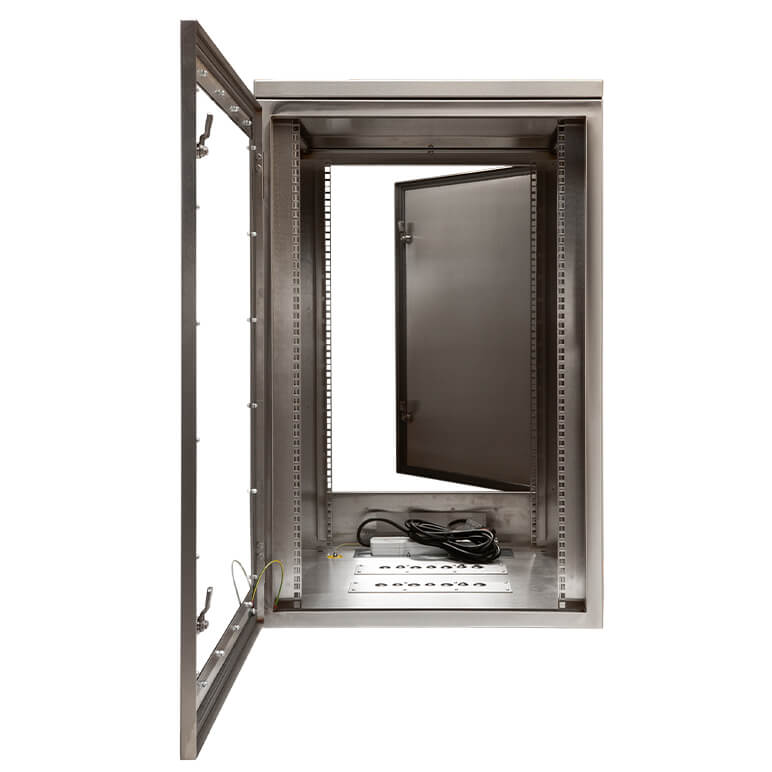

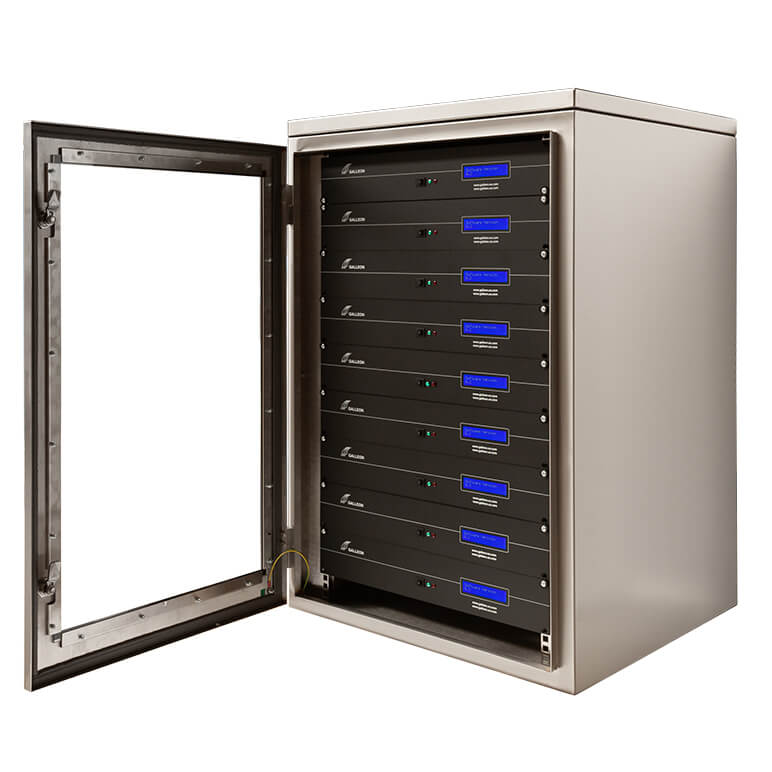

Click thumbnails for larger images:

REQUEST PRICES »

    Ideal for:

  • Server Rooms.
  • Factory Floors.
  • Wet/Washdown environments.
  • Industrial Applications.

At a glance:

Size (HxWxD)mm:
945 x 600 x 645
Material:
Stainless Steel
Max. Capacity:
18U
Mounting:
Floor
IP rating:
IP65
Product Code:
SPRI-770R-UK

The Armagard SPRI-700 series rack mount cabinet manufactured from 316 grade stainless steel and is sealed to IP65. It is suitable for any standard EIA 19" rackmountable device that needs to be operated in wet or washdown locations.

Features & Benefits

Used across Europe to house servers and other rackmountable devices the 700 series server cabinet can be supplied with surge protected mains power block, air circulation fan and optional heater unit for cold environments.

Feature Benefit
Manufactured from food grade (316) stainless steel 316 stainless steel has a high resistance to corrosion and staining. It is low maintenance, and also has antibacterial properties. Ideal for wet or humid conditions or in food preparation areas
18U storage capacity Plenty of room to house numerous 19" rackmountable equipment
Water repellent seals Fitted as standard to the door, locks and window prevent damage to the enclosed equipment by ingress of liquids and allows light or heavy wash down of the enclosure
Internal fan(s) Maintain a stable, uniform internal temperature reducing strain on all enclosed components and extending life span
Heater & air-conditioning modules These optional extras allow the installation of this unit at extremes of temperature ranging from -5°C to +40°C
Surge protected four way mains distribution Prevents damage to enclosed equipment from 'spikes' of electricity thus extending lifespan
Stainless Steel Quarter Turn Locks Maintain a tight waterproof seal around the enclosure door. Other lock options are available for installation in areas where abuse or theft is a concern

For full specifications & prices - Contact Us Now!

Specifications & Guarantees:

All Armagard enclosures are constructed according to European IP and International NEMA standards, ensuring protection from liquids and particulates.

Specifications:

Height:
900mm
Width
600mm
Depth:
600mm
IP rating:
IP65
Product Code:
SPRI-770r-UK
    5 year warranty, TNT delivery, DSV delivery, CE, and RoHS logos

    We guarantee:

  • 5 Year Warranty of all mechanical parts
  • Fast delivery
  • Informed and helpful staff
  • High quality engineering
  • Over 14 years of industry experience

For full specifications & prices - Contact Us Now!
